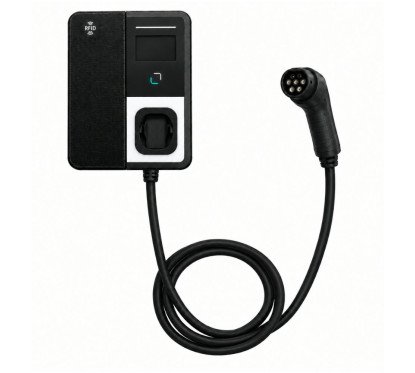

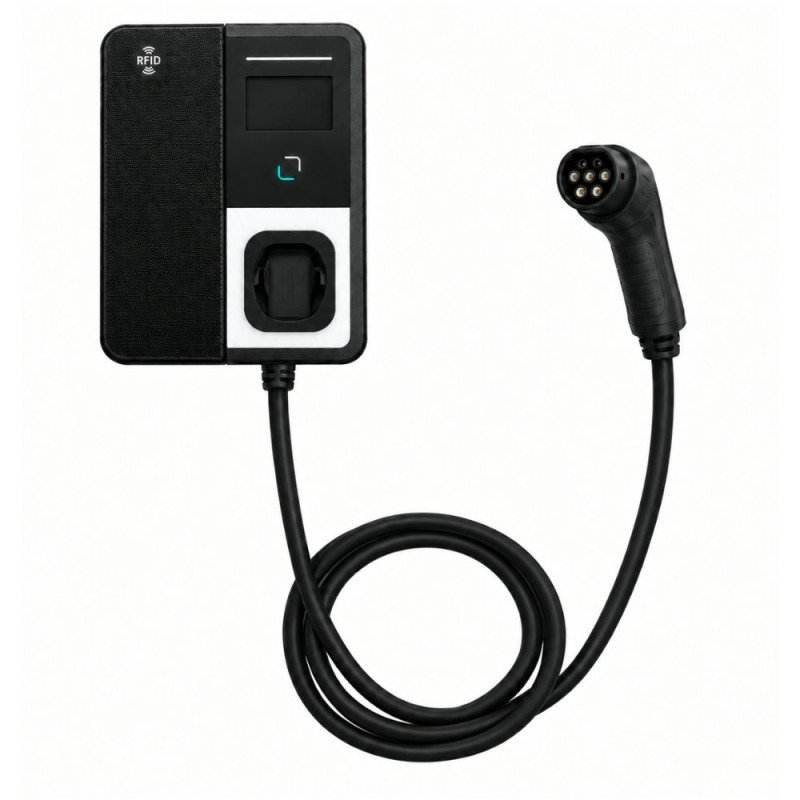

MEGA Elegant EVPC02-22 22kW Type 2 EV Charger

The MEGA Elegant EVPC02-22 is a high-performance 22kW Type 2 EV charger designed for reliable electric vehicle charging in residential, commercial and outdoor environments. It supports three-phase power supply with a maximum charging current of 32A and a rated voltage of 400V.

Smart Charging Features

• 2-inch LED Display: Displays charging current, charging time and power information.
• Adjustable Charging Current: Select between 8A, 10A, 13A and 16A using the touch button.
• Scheduled Charging: Set a charging delay of 2, 4, 6 or 8 hours.
• Quantitative Charging: Set the required charging energy from 0 to 99kWh.
• RFID Authorization: Supports RFID-based charging authorization.
• APP Control: Allows convenient control and management through the mobile application.

Safe and Flexible Installation

The control box features an IP65 protection rating, making the charger suitable for both indoor and outdoor applications. The 5-meter TPU charging cable with connector cap provides convenient reach and protection for everyday charging requirements.

The EVPC02-22 can be installed using either a wall-mounted or pole-mounted configuration, providing flexibility for homes, parking areas, workshops, commercial locations and other EV charging installations.

Advanced Charging Solutions

Additional smart charging solutions are available, including dynamic load balancing and PEN detection, helping provide safer and more efficient EV charging depending on the installation requirements.

Key Features

• 22kW maximum charging power
• 400V three-phase power supply
• Maximum current up to 32A
• Type 2 charging connector
• 2-inch LED display
• Adjustable current control
• 2/4/6/8-hour charging delay
• 0–99kWh quantitative charging
• RFID authorization
• APP control
• IP65 control box
• 5m TPU cable with connector cap
• Wall or pole mounting
• Optional dynamic load balancing
• Optional PEN detection
