DC Charger Station 40kw GBT and CCS2 Gun

Charging Station 40kW – Dual Port CCS2 & GBT – With Payment POS

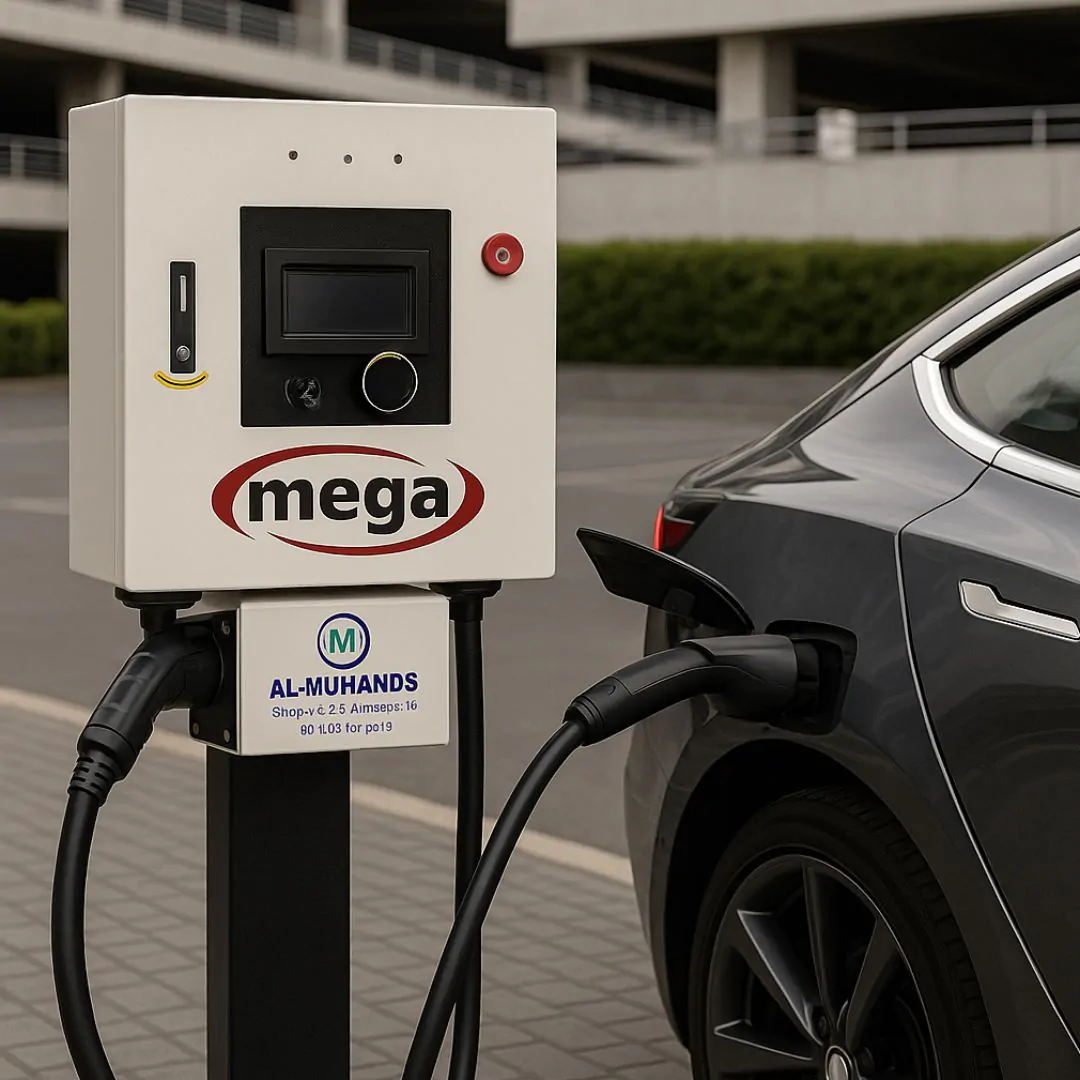

DC Electric Car Charging Station The 40 kW MEGA is the ideal choice for shopping malls, gas stations, parking lots, and hotels. Combining high performance, precision and safety, it supports charging most electric vehicles using CCS2 and GB/T outputs. It is also equipped with a 7-inch touch screen and an electronic payment system (POS) that supports bank cards, NFC, and contactless payment.

Main features:

✅ DC 40KW charging capacity

• Fast and safe charging for electric cars
• Supports two types of charging:
  • Single port: CCS2 or GB/T 40KW
  • Two ports: CCS2 + GB/T with 20KW + 20KW capacity (with automatic power balancing)

✅ Built-in POS payment system (With Payment POS):

• What is “POS”?
  POS = “Point of Sale”, a built-in system that allows users to pay shipping fees directly through the terminal using:
  • Bank cards (Visa, Mastercard, AMEX)
  • NFC (such as Apple Pay, Google Pay)
  • Magnetic and contact cards
  • RFID and Intelligent Identification Systems
• Ease of use: Payment information is displayed on the screen, and customers can swipe their cards or devices for instant payment, without the need for external applications.

✅ 7 inch smart touch screen

• Easy-to-use graphical interface
• Instant display of charge level, current, voltage and cable status

✅ Global compliance with shipping standards

• CCS2 (left)
• GB/T (right)
• Compatible with most electric cars in the Middle East, China and Europe

✅ Weather resistant design

• IP54 protection level
• Run in an environment from -20°C to +50°C
• Suitable for indoor and outdoor installation

✅ Complete security system

• Protection type: RCD Type A
• Automatic stop at any malfunction
• Protection from overvoltages, contact, and storms

Technical specifications:

Specification	Value
Model	CHR-40S
Input voltage	380VAC ±15%, 3 wins + N + PE
Frequency	50/60 Hz
Input current	61A @ 380V
Power factor	0.99 (at full load)
Efficiency	95%
Outward voltage	200~750V DC
Maximum output current	DC 125A
Cable length	4.4 meters
HMI User Interface	7 inch LCD touch screen
Back-end connection (OCPP)	OCPP 1.6
Standards	EN IEC 61851-1:2019, CE, ISO 15118, GB/T 27930
Dimensions	1600 × 680 × 420 mm
Net weight	About 135 kg
Installation	Vertical, with a maximum inclination of 5 degrees

Operating environment:

• Operating temperature: -20°C to +50°C
• Humidity: 5% to 95% (no condensation)
• Noise level: ≤75 dB @5m
• Suitable for indoor or outdoor installation
• Operating conditions: no conductive dust, no explosive gases, no strong vibrations

Uses:

• Modern gas stations
• Hotel parking
• Shopping centers and malls
• Factories and warehouses
• Positions of major companies

Why choose this device from MEGA?

• Intelligent dual charging solution (CCS2 + GB/T)
• High performance with 95% accuracy and efficiency
• Built-in payment system provides you with direct profit from the service
• Ease of use and maintenance
• Reliable and certified by CE and OCPP
