Launch X-431 PRO SE ( PRO V5.0 ) Diagnostic Device

The Review On YouTube

Launch X-431 Pro SE V5.0 diagnostic  (2023) In Dubai UAE- This is an updated generation of the LAUNCH universal multi-brand autoscanner.

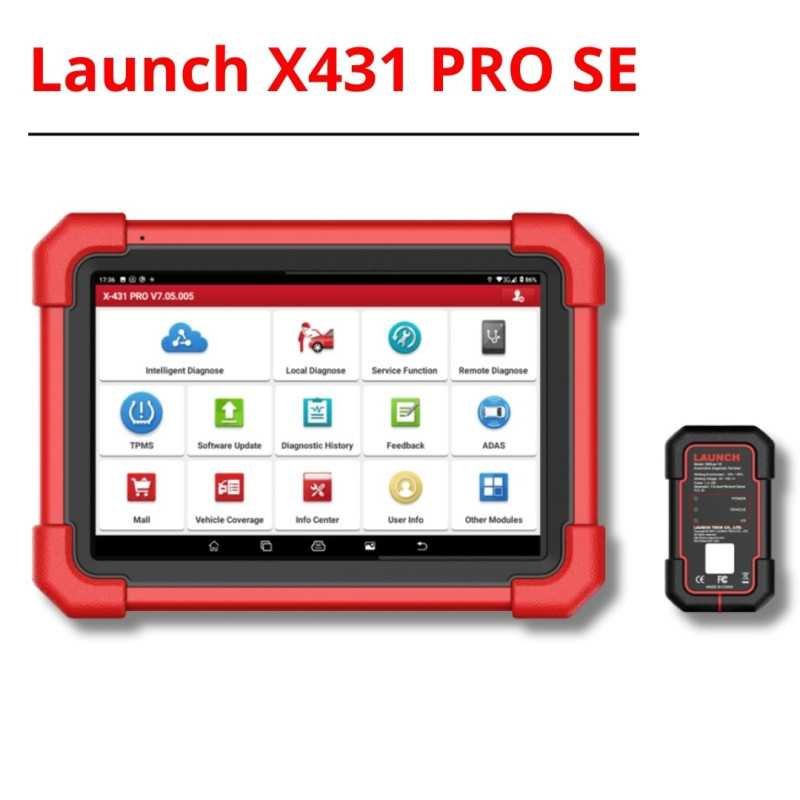

Launch X-431 PRO SE ( PRO V5.0 ) Diagnostic Device

• In the first quarter of 2023, Launch announced the release of the 5th generation of its most popular PRO series scanner.
• Like its predecessors, the kit consists of a tablet, a separate diagnostic BT adapter and a set of additional non-OBD connectors
• The 8 inch tablet has become more compact and much more powerful:
  • Discrete board based on Android 10.0 equipped with a 4-core 2 MHz processor, 4 GB RAM and 64 GB FLASH disk
  • one rear camera, USB connectors (type-C and type-A), microphone
  • audio jacks, sound control buttons and depot for the BT adapter are missing
  • preinstalled latest 7th version of APP with screen rotation support
• The new adapter version VII is equipped with a USB connector (type-C) and supports all major protocols, incl. one of the latest DoIP
• An important breakthrough for the PRO series is the possibility of using the O2-1 and S2-2 expansion modules

Opportunities

Launch X-431 Pro V5.0 diagnostic supports diagnostics of all electronic control systems of European, American and Asian vehicles (including RHD Japanese vehicles).

Wide range of car brands: Smart, America Ford, Chrysler, GM, Acura, INFINITI, Lexus, Australia Ford, Holden, Brazil GM, Brazil Fiat, Brilliance Auto, BYD, Changan, ChangCheng, Changhe, Chery, GEELY, Gonow Auto, HaFei , JAC, Jiangling, SGMW, Tianjin FAW, Xiamen, XinKai, ZhongShun, Zhongxing, ZOTYE, Audi, Benz, BMW, Citroen, Europe Ford, Fiat, Jaguar, Lancia, Landrover, Opel, Peugeot, Porsche, Renault, Romeo, Rover , Saab, Seat, Skoda, Transporter&V-Class, Volkswagen, Volvo, Mahindra, MARUTI, TATA, Daihatsu, Honda, JPIsuzu, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota, Daewoo, Hyundai, Kia, Ssangyong, Perodua, Proton , S.Africa Opel, Thailand Isuzu,

as well as any vehicles that support the OBDII/EOBD standard (data buses SAE J1850 VPW, SAE J1850 PWM, ISO 9141-2, ISO 14230, ISO-15765-4 CAN, DoIP (ISO 13400)).

Coverage map

Launch X-431 Pro SE V5.0 diagnostic

Description of supported systems and functions, as well as changes/improvements/corrections of the latest version of the program for each of the brands can be found here: http://qcar.x431.com/qcar

Functions

Launch X-431 PRO SE ( PRO V5.0 ) Diagnostic Device

• Reading and erasing fault codes
• Identification of control units
• Read current settings
• Checking actuators
• Adaptation of control units
• Control unit coding
• 12 separate programs-special functions for basic maintenance operations
• Remote Diagnostics
• Intelligent Diagnostics
• Diagnostic history

Advantages

• Diagnostic DBScar VII (Bluetooth / USB) without built-in OBDII connector (uses extension adapter cable)
• Support for the latest DoIP protocol
• Support for wireless printing of diagnostic results to a mini printer
• VSP-600 video endoscope support
• Support for additional expansion modules: ADAS, X-PROG, X-PROG 3, TS-GUN, BST-360, Oscilloscope O2-1, Sensorbox S2-2
• Convenient Russian menu, simple operation
• Interface as close as possible to the original dealer devices
• No blocking after subscription expiration
• More than 90 stamps in the basic set of more than 200 available
• 12 universal special function programs in a separate menu
• Functionality and coverage map are constantly expanding
• 24 OBD-I adapters included for diagnosing vehicles with non-standard connectors

Peculiarities

• launch have a free three-year subscription.
• Communication between the tablet and the diagnostic adapter is carried out via Bluetooth and a USB cable.
• The device is updated via WiFi directly from the application via the Internet from the manufacturer's server.
• An internet connection is only needed to download updates and perform some online procedures such as VIN scan, SGW, online coding, etc.

The tablet

Parameters \ Model	PRO	PRO v.2016	PRO v.2017	PRO V4.0	PRO SE V5.0
Generation PRO	I	II	III	IV	V
Appearance
Operating system	Android 4.4.2	Android 5.0	Android 7.1	Android 7.0	Android 10.0
Processor, GHz / cores	1.0/2	1.3/4	1.4/4	1.3/4	2/4
Screen diagonal inches/pixels.	7 / 1024 x 600	8 / 1280 x 800	8 / 1280 x 800	8 / 1280 x 800	8 / 1280 x 800
RAM, GB	0.5	1.0	2.0	2.0	4.0
Built-in memory, GB	4	sixteen	sixteen	32	64
Preinstalled microSD, GB	eight	-	-	-	-
Memory expansion, GB	up to 32 microSD	up to 32 microSD	up to 128 microSDXC	up to 32 microSD	-
Touch screen	capacitive	capacitive	capacitive	capacitive	capacitive
Front / rear camera, Mp	0.3 / 3.0	2.0 / 5.0	- / 5.0	- / 5.0	-/8.0
Interfaces	WiFi, BT, USB	WiFi, BT, USB	WiFi, BT, USB	WiFi, BT, USB	Wi-Fi, BT, 2xUSB
Battery, mAh	3000 Li-ion	4200 Li-ion	4850 Li-ion	4680 Li-Pol	6300 Li-Pol
Dimensions LxWxH, mm	210 x 160 x 50	235 x 165 x 30	231 x 165 x 30	226 x 203 x 43.5	234x166x39.5
Weight, g	710	680	630	855	1025
APP	3.11.014	5.02.020			7.05.004

1. Microphone
2. Microphone
3. LCD crane
4. Speakers
5. Camera
6. USB type-A connector for wired connection of the diagnostic adapter and accessories. modules
7. USB type-C connector for charging and PC connection
8. Power On/Off/Screen Lock Button
9. On / off - press & hold; Lock - short press

Diagnostic adapter

Parameters \ Model		PRO	PRO v.2016	PRO v.2017	PRO V4.0	PRO V5.0
Adapter Model		DBScar	DBScar II (DS201)	DBScar V (DS201)	DBScar IV (DS301)	DBScar VII
Appearance
Connection methods		standard OBDII connector
Operating voltage, V		9 ÷ 15	9 ÷ 18	9 ÷ 18	9 ÷ 18	9 ÷ 18
Quiescent current, mA		25	25	25	25	TBD
Average consumption, mA		35	165	165	165	TBD
Working temperature, ℃		-20 ÷ 55	-10 ÷ 50	-10 ÷ 50	-10 ÷ 50	-10 ÷ 50
Storage temperature, ℃		-30 ÷ 70	-30 ÷ 70	-30 ÷ 70	-20 ÷ 70	-20 ÷ 70
Dimensions L x W x H, mm		48 x 32 x 24	62 x 103 x 28	62x109x29	47 x 72 x 24	70x118x32
Weight, g		26	120	135	fifty	168

1. DB15 connector for connecting to the car's OBDII connector using an extension cable
2. USB type-C port for connecting the adapter to the tablet
3. Specification label
4. Light indication: POWER red - power supply OK;
   VEHICLE green blinking - data exchange via OBD;
   I/O blue/red - Bluetooth / USB connection
5. QR code and serial number
