Autel MaxiIM IM508S Key Programming Service Tool Device

The IM508S is an Android-based touchscreen diagnostic, service and key programming tablet. This 7-inch Wi-Fi tablet includes the XP200 key programmer, offers immobilizer and key programming capability for most U.S., and Asian vehicles. Use to program Autel’s line of IKeys. The IM508S, an all-systems code reader and service tool, offers powerful IMMO functionality including backup, restore, adaptations and coding, key generation and key learning & remote learning.

• MaxiIM IM508S is an ultra fast portable immobilizer and key programming device
• Powerful combination of key programming/all system diagnostics/maintenance services
• Smart Mode for guided and automated key learning
• Expert Mode for advanced key learning
• Read PIN/CS (all key lost), key generation, key learning, remote learning
• IMMO ECU reset/adaptation, refresh/coding
• All systems diagnostics for US, Asian and European vehicles, 1996 and newer
• Maintenance services including EPB, DPF, SAS, Oil reset, and BMS

What is Autel MaxiIM IM508S?

Autel MaxiIM IM508S is a 7-inch, Android-based touchscreen tablet with professional key and immobilizer programming functionality, all systems diagnostics, and an extensive service menu. The tablet, which features a quad-core processor and 64 G.B. onboard memory and runs on the powerful Android 11 operating system, offers faster bootup and operation speed.

Equipped with the XP200 key programmer, IM508S is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of makes and models on the market, IM508S provides you with superior special functions. IM508S is the perfect solution for shopkeepers and technicians who demand affordable and powerful IMMO and diagnostic services.

Autel MaxiIM IM508S Highlights:

1. 3 Year Free Update Online
2. Language Supported:

* Diagnose Software: Default Language is English, Can Be Changed Language to German, Swedish, Italian, Portuguese, French, etc.

* IMMO Software: Multi-Language Available as well, English, Spanish, French, German, Russian, Japanese, Korean, Polish, Portuguese, Swedish, Persian, Turkish, Thai, Vietnamese, Hebrew, Arabic, Indonesian, Italian, Dutch
3. Function IMMO+ Diagnose: Powerful combination of key programming/all system diagnostics/ advanced maintenance services
4. Vehicle Supported: Powerful OE-level diagnostics for more than 80 US, Asian, and European makes and models
5. Advanced Maintenance Services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn
6. Full System Diagnosis, Bi-Directional Control & 28+ Services functions: the same ability as MX808, MK808, & MK808BT on general diagnose and services functions
7. NEW! Support active tests and complete special functions (28+ special functions)
8. *Wifi is required for key programming and diagnostics*
9. Supports FCA SGW Automatic Authentication with AUTOAUTH, Cloud Management, AUTO VIN SCAN, Shop and Data Manager Applications.

Autel MaxiIM IM508S Recent Update:

BMW Software
All keys lost & add key by OBD II for BDC module equipped BMW F-series vehicles.

Toyota V1.80:

1. Adds PIN-free functions Add Smart Key and All Keys Lost (with 8A-BA (TMLF19D) Type Smart Main ECU) for models with smart key as of 2022 including Sienna HV, Harrier HV, Tundra HV, and bZ4X.
2. Adds IMMO functions for models as of 2023 including Alphard/Vellfire, Highlander, RAV4, and Corolla

Lexus V1.80:

1. Adds PIN-free functions Add Smart Key and All Keys Lost (with 8A-BA (TMLF19D) Type Smart Main ECU) for models with smart key as of 2022 including NX series and RX series.
2. Adds IMMO functions for models as of 2023 including IS 300, IS 350, LC 500, LS 500, RC 300, RC 350, and ES 350.

VW V1.90:

1. Adds MQB NEC35XX type instrument cluster reading & writing function and data decoding function (with XP400 Pro/XP1 Pro and APB130 adapter), supporting chip models including D70F3532, D70F3525, D70F3526, D70F3537, and D70F3529 for common models such as Arteon (2017- 2021), Golf (2013-2021), Passat (2015-2021), Polo (2015-2021), Tiguan (2018-2021), Touran (2016-2022), Jetta (2018-2021), and T-Roc (2018-2021).

Audi V1.90:

Adds MQB NEC35XX type instrument cluster reading & writing function and data decoding function (with XP400 Pro/XP1 Pro and APB130 adapter), supporting chip models including D70F3532, D70F3525, D70F3526, D70F3537, and D70F3529 for common models such as A1 (2019-2021), A3 (2021-2021), Q2 (2017-2021), and Q3 (2019-2021)

Seat V1.90:

Adds MQB NEC35XX type instrument cluster reading & writing function and data decoding function (with XP400 Pro/XP1 Pro and APB130 adapter), supporting chip models including D70F3532, D70F3525, D70F3526, D70F3537, and D70F3529 for common models such as Arona (2018-2021), Ateca (2017-2021), Ibiza (2018-2021), Leon (2013-2021), Tarraco (2019-2021), and Toledo (2013-2019)

Skoda V1.90:

Adds MQB NEC35XX type instrument cluster reading & writing function and data decoding function (with XP400 Pro/XP1 Pro and APB130 adapter), supporting chip models including D70F3532, D70F3525, D70F3526, D70F3537, and D70F3529 for common models such as Octavia (2013-2021), Fabia (2015-2021), Superb (2015-2021), Kodiaq (2017-2021), Kamiq (2020-2021), and Rapid (2013-2021).

IM508S vs IM508:

Autel MaxiIM IM508S Function List:

All Systems Diagnostics
AutoVIN / AutoScan
Read / Erase Codes
View, Record, Playback Live Data
View Freeze Frame Data
Shop and Data Manager Applications
Key Read / Write
EEPROM / MCU Read / Write
Read PIN / CS (All Key Lost)
Key Generation
Key Learning
Remote Learning
Backup / Restore IMMO Data
IMMO ECU Reset / Adaptation
IMMO ECU Refresh / Coding
BMW FEM / BDC Key Learning and ECU Adaptation
VW / AUDI MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost, A6 All Keys Lost, and More

Autel MaxiIM IM508S Features:

Advanced Key Programming:

The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II connection.

This application can access the key chip, read, retrieve and write key information, support read PIN/CS (all key lost), key generation, key learning, remote learning, IMMO ECU Reset/Adaptation, IMMO ECU Refresh/Coding, Backup/Restore IMMO Data, BMW FEM/BDC Key Learning and ECU Adaptation.

Programming:

The Programming application requires connection between the tablet and the XP200, and no vehicle connection is required. This application can access the key chip, read, retrieve and write key information, as well as other key related functions

1.Read PIN/CS (AII key Lost)

2.Key Generation

3.Key Learning/Remote Learning

4.Backup/Restore IMMO Data

5.IMMO ECU Reset/Adaptation,Refresh/Coding

6.For BMW FEM/BDC Key Learning and ECU Adaptation

7.For VW/For AUDI MQB Key Learning,48 Transponder(96-bit)Add Key ,All Key Lost,A6 AII Key Lost

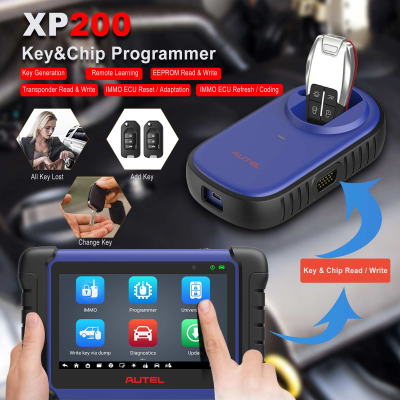

XP200 Programmer:

The XP200 Key Programmer: The Best Partner of IM508S and Provides Smart IMMO Anti-theft Functions:
● Key Generation
● Key Programming, Add Key, All Key Lost
● Remote Learning
● EEPROM Read & Write
● Transponder Read & Write
● IMMO ECU Reset & Adaptation
● IMMO ECU Refresh & Coding

Bi-Directional Control/ Active Test

What would you do if the wipers stopped working? Just replace one or spend a lot money to fix it? Don't be in a hurry to dismantle your cars! Key Programming tool IM508S can perform real active tests that can send commands to the vehicle's ECU to drive the actuators to work, like ABS, window, door, solenoids, valves, wipers, headlamp, etc, helping you quickly find out bad parts and pinpoint faulty issues. Note: NOT universal. Please check compatibility.

Note: Functions NOT universal, please send VIN(17 digits),car makes, model, year to check compatibility before purchase.

FCA "Auto Auth" Access:

Supports FCA "Auto Auth" gateway for 2018 and newer FCA cars(Chrysler/Dodge/Jeep,etc) for US/Canada & Mexico.

NOTE: For a few Renault and FCA cars, when doing IMMO key programming, "autoauth" is not enough, sill need 12+8 adapter.

CLOULD REPORT MANAGEMENT:

This is a long-awaited feature for old customers!! With it, you can upload diagnostic reports to Autel Cloud and share reports with your customers through QR Code/email/text message easily, and they can view the reports anytime. Like other cloud space, it is a back garden for your diagnostic reports to help you enhance data centralization, share simply and quickly, reduce memory burden and improve work efficiency.

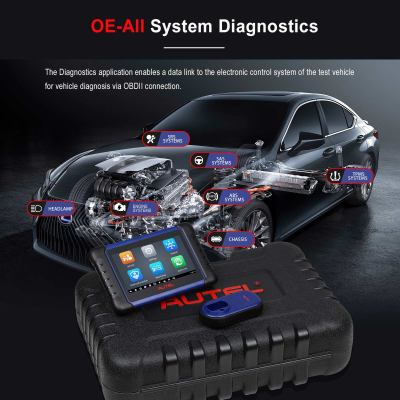

OE-level Diagnostic Capability, Same as MK808

Autel IM508S has the same diagnostics & service functions as Autel MX808/ MaxiCOM MK808/ MK808BT, which can quickly diagnose all available modules for more than 80 US, EU and Asian cars. It can retrieve ECU information, read & erase DTCs, view live data, Freeze data frame on Engines/ Transmission/ Airbags/ Immobilizer/ Key Coding/ ABS/ SBS/ Doors/ Gateway/ Steering Angle/ Air Suspension/ Body and so on.

● ECU Information — provides the retrieved ECU information in detail. An information screen opens upon selection.
● Read Codes — displays detailed information of DTC records retrieved from the test vehicle’s ECU.
● Erase Codes — erases DTC records and other data from the test vehicle's ECU.
● Live Data — retrieves and displays live data and parameters from the test vehicle' s ECU.
● Active Test — accesses specific subsystem and components tests of vehicles.
● Special Function — performs various component adaptations.

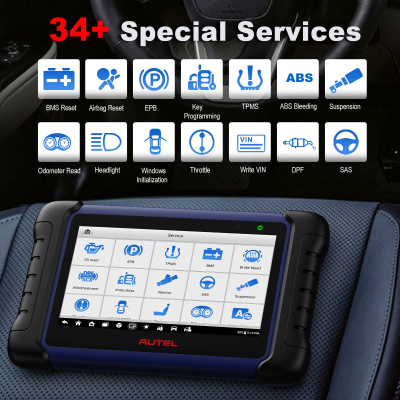

28+ Maintenance Service Function

Oil reset, EPB, TPMS, BMS, brake bleed, aftertreatment, injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Language Change, Headlamp, CHG tire size, TEC learn, ABSSRS, Cylinder, VGT learn, Speed & PTO, Clutch, Trans adaptation, Airbag reset, A/F setting, Automatic Start/Stop, electronic water pump start, EGR, FRM reset, transport mode, HV battery, ACC, A/C, rain/light sensor.

How much did you spend on maintaining your car? In fact, experience tells us that just a small repair service may cost a lot of money. So Autel IM508S scanner are actively reducing the unnecessary expense by integrating 28+ services, meeting many daily service needs, such as Oil/EPB/SAS/DPF/BMS/ABS Bleed/Injector, etc. Note: Functions vary by vehicle, please send VIN to us to check compatibility before order.

SMART MODE + EXPERT MODE

IM508S Provides Smart Mode and Expert Mode to Guide Both Peoples Performing IMMO-related Functions, Including Key Learning, Remote Control Learning, Remote Control Add, All Key Lost and etc.

● Smart Mode: Allows Car Owners Doing Automated Key Learning with Smart Guide.

● Expert Mode: Allows Professionals to Customize Each Module to Choose the Nest Solution.

The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II connection.
The application retrieves vehicle IMMO information and performs IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, etc.

Other Feature:

● Use with Autel G-BOX2:

The Autel G-BOX2 is an adapter used to program keys for Mercedes-Benz DAS3 CAN EIS/EXS (All Keys Lost), Mercedes-Benz All Keys Lost Password Calculations and DME/DDE ISN Reading & Writing in Boot Mode or Bench Method for BMW; Reads and writes Bosch engine ECU on F chassis of BMW and MQB of Volkswagen.This G-Box2 contains cables, fuse connector, and CAN line connectors.

● Use with Autel APB112:

Collect the data sent from the ignition coil, identify the ignition coil troubles , 46, 4D key chip data collection and key simulation,Toyota/ Lexus smart key all key lost.

● Use with Autel IMKPA:

IMKPA is a Key Programming Adapter Kit, compatible with the XP400Pro Key & Chip Programmer. Includes 12 adapters for the XP400Pro that enable Read/Write/Erase for Mercedes Benz ESL_W209 / W906 Data, for Mercedes Benz NEC Key Learning, BMW EWS3 Key Learning and for Volkswagen/AUDI/BMW/Benz Key Unlock.

IM508S MaxiIM Software:

Keytool Function:

Diagnostic:

Optional:

Autel IM508S Specifications:

Autel MaxiIM IM508S Includes:

1PC x MaxiIM IM508S Tablet
1PC x XP200 Key Programmer
1PC x Main Cable
1PC x Mini USB Cable
1PC x USB External Power Adapter
1PC x APB001 (EEPROM Adapter)
1PC x APB002 (68HC908 Adapter)
1PC x APA002 (EEPROM Socket)
1PC x APA001 (EEPROM Clamp Intergrated MC9S12 Cable)
1PC x AAC001 – MED17 Cable
1PC x KIA-10 Adaptor
1PC x KIA-20 Adaptor
1PC x Mazda-17 Adaptor
1PC x Honda-3 Adaptor
1PC x Carrying Case
