- New
ELECTRIC LOCK 380V 2 POST LIFT 4 TON
$2,450.65
ELECTRIC LOCK 380V 2 POST LIFT 4 TON
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Fast Delivery(edit with the Customer Reassurance module)
ELECTRIC LOCK 380V 2 POST LIFT 4 TON
Download it : Link

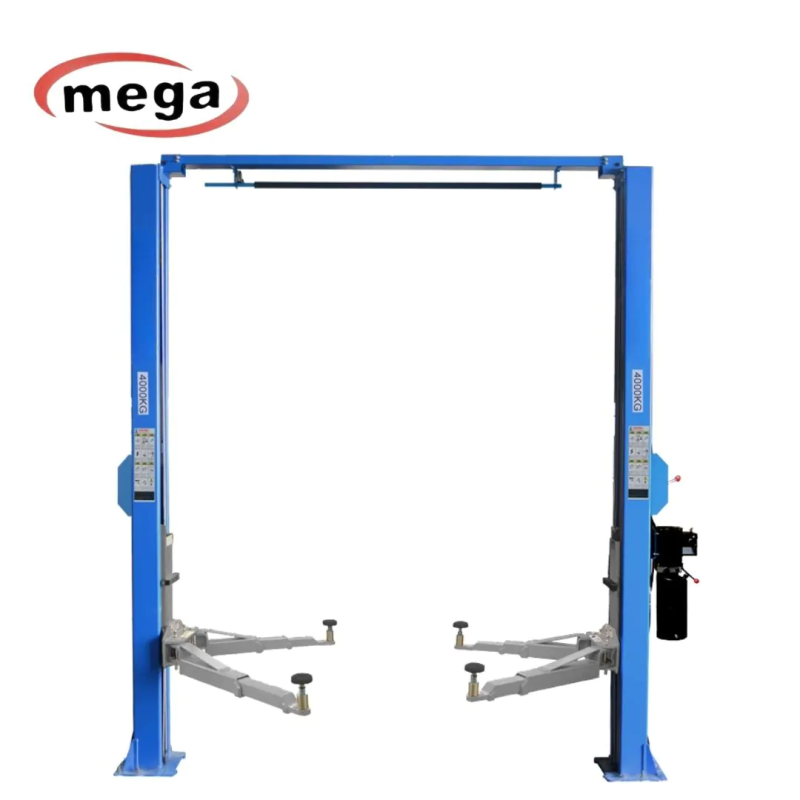

Two-Post Hydraulic Lift ME-240A
ELECTRIC LOCK 380V 2 POST LIFT 4 TON
Model ME-240A – a powerful, reliable, and fast car lift designed for workshops and garages. Built with precision, high-quality materials, and multiple safety systems, it ensures smooth operation for lifting up to 4000 kg.
Technical Specifications
| Feature | Details |
|---|---|
| Model | ME-240A |
| Lifting capacity | 4000 kg |
| Lifting height | 1.845 m |
| Minimum height | 0.105 m |
| Upload duration | 50 seconds |
| Descent period | 30 seconds |
| Total height | 3.7 m |
| Internal width | 2.86 m |
| Total width | 3.44 m |
| Motor voltage | 380V / 220V / Other |
| Motor capacity | 2.2 kW |
Main Features
- Precision manufacturing: CNC-machined oil cylinder parts for accuracy.
- High-quality components: Japanese/Italian oil insulation elements and international oil pipes.
- Advanced lifting system: Double-chain design synchronized with steel wires.
- Durability: Corrosion-resistant polymer sliders.
- Multiple safety mechanisms:
- Single-sided controllable safety lock
- Serrated arm locks
- Overhead protection device
- Automatic gear lock
- High-quality finishing: Thermal coating for corrosion resistance.
Basic Advantages
- Clear-Floor Design: No obstacles between columns.
- Fast Operation: Lift in 50s, lower in 30s.
- Strong Structure: Handles cars and small trucks up to 4000 kg.
- Voltage Flexibility: Operates on 380V or 220V.
Safety Guidelines
- Floor requirements: Concrete ≥ 500 mm thick, strength C25 or higher.
- Load limit: Max 4000 kg.
- Maintenance: Regularly check chains, seals, and hydraulic parts.
- Safe installation: Flat, well-supported surface is required.
Installation Steps
- Preparation: Ensure space, check floor specs, connect proper wiring (≥ 2.5 mm² with grounding).
- Setup: Place and secure columns with custom bolts.
- Connect and synchronize roller chain.
- Test system for safe operation.
Space Requirements
- Room width: 4.44 m (3.44 m crane + 0.5 m each side).
- Room length: 7.0 m minimum.
- Ceiling height: 4.2 m (3.7 m crane + 0.5 m clearance).
Why Choose ME-240A?
- Modern design with clear-floor system.
- Multiple safety mechanisms for user and vehicle protection.
- Handles up to 4000 kg – suitable for most cars and small trucks.
- Fast lifting and lowering times for maximum workshop efficiency.
ELECTRIC LOCK 380V 2 POST LIFT 4 TON
