Two Post Lift 220V 4Ton - MANUAL LOCK -Grey
AED7,200.00
4 Ton Two-Post Car Lift – 220V
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Fast Delivery(edit with the Customer Reassurance module)
MANUAL LOCK • CLEAR-FLOOR • 2-POST LIFT • 220V ONLY

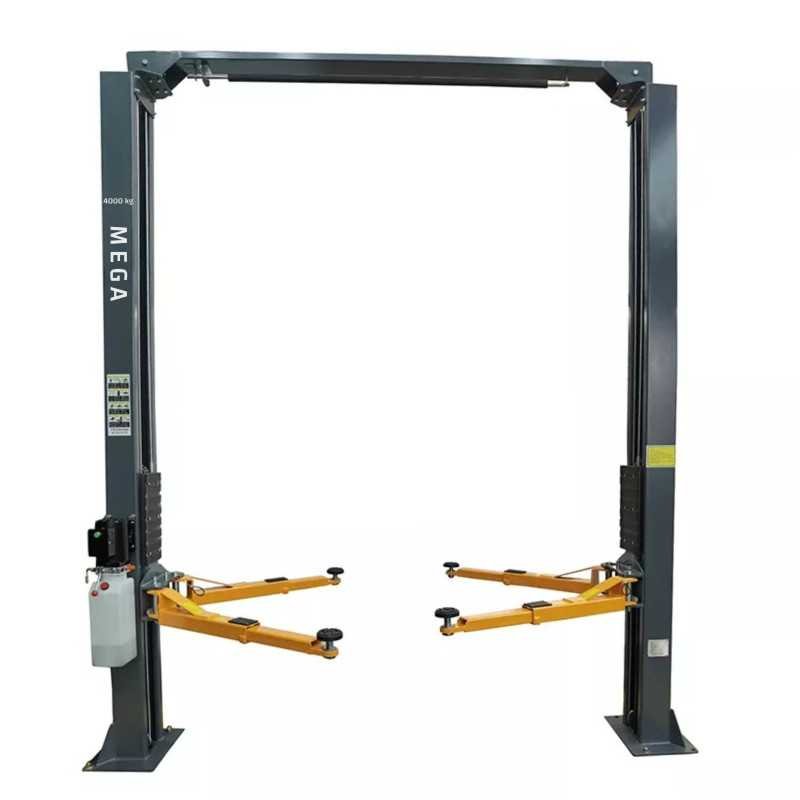

ME-240A Two-Post Car Lift — 4 Ton (Grey)
Heavy-duty 4 ton two-post car lift with manual safety lock, clear-floor design and 220V operation — ideal for professional automotive workshops.
📘 Download Catalog & Installation Instructions (PDF)
Detailed installation drawings • Step-by-step setup • Technical requirements
Technical Specifications
| SKU | ME003623 |
| Lifting Capacity | 4000 kg |
| Max Lifting Height | 1.845 m |
| Min Height (Pickup) | 0.105 m |
| Lifting Time | 50 seconds |
| Lowering Time | 30 seconds |
| Overall Height | 3.7 m |
| Inside Width | 2.86 m |
| Overall Width | 3.44 m |
| Motor Voltage | 220V |
| Motor Power | 2.2 kW |
Key Features
- Precision manufacturing: hydraulic cylinder parts processed on high-speed CNC lathes for excellent finish and accurate concentricity.
- Quality components: Japanese or Italian oil seals for durability, with international-brand oil pipes for consistent performance.
- Advanced lifting system: double-chain structure synchronized using secure steel wire for stable lifting.
- Long service life: wear-resistant polymer slide blocks reduce friction and extend working life.
- Multiple safety protections: one-side controlled safety lock (manual lock), toothed arm locks, overhead protection device, and automatic arm lock via gear/ratchet technology.
- Durable finish: heat-baked coating engineered for corrosion resistance in workshop environments.
Core Advantages
- Clear-floor design: no obstacles between columns for easier movement and under-vehicle access.
- Fast operation: raise in 50 seconds and lower in 30 seconds for higher productivity.
- Strong structure: rated for 4,000 kg, suitable for standard vehicles and light commercial applications.
- 220V workshop-friendly: configured for 220V supply to match common workshop electrical setups.
Safety Guidance
- Concrete requirement: minimum thickness 500 mm, concrete strength C25 or higher.
- Load limit: do not lift vehicles exceeding 4,000 kg.
- Routine checks: inspect chains, oil seals, and hydraulic components regularly.
- Safe operation: ensure the lift is anchored on a flat, reinforced surface and that safety locks are fully engaged before working under the vehicle.
Installation Steps (Summary)
- Verify required space, concrete thickness (≥ 500 mm) and strength (C25+).
- Position the columns on the concrete base and fix them using the dedicated anchor bolts.
- Connect the cylinder chain system and complete synchronization.
- Connect the 220V power supply with proper grounding; use suitable wiring as specified by your electrician and local code.
- Test lift operation (up/down), confirm arm locks and safety locks function correctly, then commission with a controlled load within rating.
Minimum Workshop Space Required
Room width: Lift overall width 3.44 m + 0.5 m clearance each side (1.0 m total) → Minimum 4.44 m
Room length: Vehicle + working distance → Minimum 7.0 m
Ceiling height: Lift overall height 3.7 m + 0.5 m extra clearance → Minimum 4.2 m
Space summary: 4.44 m (W) • 7.0 m (L) • 4.2 m (H)
