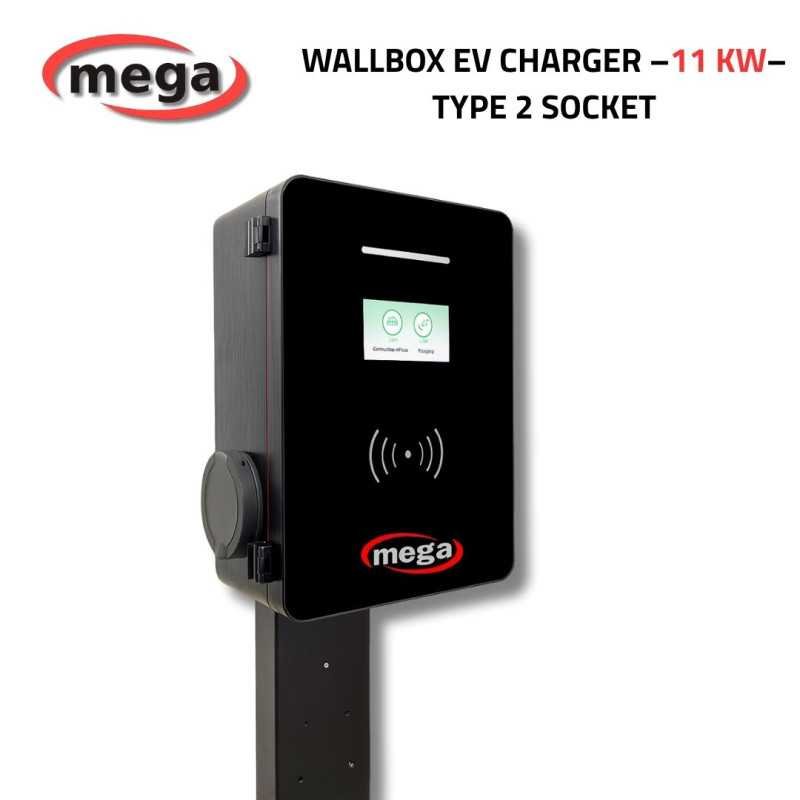

Wallbox EV Charger – 11kW – Type 2 Socket
AED2,000.00
Wallbox EV Charger – 11kW – Type 2 Socket
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Fast Delivery(edit with the Customer Reassurance module)
Type 2 Socket Wallbox EV Charging Station –11kW Power
Reliable daily charging – Weather-resistant design – Smart operation with OCPP support – Ideal for homes and commercial parking
The MEGA 11kW charger is a smart AC charging unit designed for electric vehicles at home or low-consumption commercial locations. It features easy installation and operation, supporting multiple charging modes such as Plug & Play or smart charging via RFID card swipe or OCPP cloud control.
Equipped with an interactive display, full protection modules, and a robust IP55-rated waterproof and dustproof enclosure. It supports connectivity via Wi-Fi, Bluetooth, and RFID and includes built-in metering for accurate energy monitoring – making it ideal for outdoor or indoor use.
✨ Key Features:
- Delivers up to11kW of power– perfect for everyday home charging
- Full support for OCPP cloud communication and remote app control
- User-friendly interface with display, RFID reader, and metering system
- Weatherproof design – IP55-rated for dust and water resistance
- Durable body with emergency stop button and tamper-protection sensor
- Only 3W standby consumption – highly energy-efficient
- Flexible installation: wall-mounted or pedestal stand compatible
⚠️ Important Notice Before Purchase:
This charger does not include a built-in charging cable. It requires an external Type 2 cable depending on your vehicle type. Here's a quick guide:
This charger does not include a built-in charging cable. It requires an external Type 2 cable depending on your vehicle type. Here's a quick guide:
- European & Gulf vehicles: Require a Type 2 to Type 2 cable (e.g., BMW, VW, Audi, Tesla Gulf).
- American vehicles: Require a Type 2 to Type 1 cable (e.g., Tesla US, Ford, Chevrolet).
- Chinese vehicles: Cannot be charged directly as they use a GB/T socket. You need a Type 2 to GB/T adapter.
- Tesla US vehicles: Require a Type 2 to Tesla cable specifically for US Tesla models.
✅ The correct cable is sold separately based on your vehicle type.
📊 Technical Specifications – MEGA EV Charger 7kW
| Item | Specification |
|---|---|
| Power | 11kW (AC) |
| Operating Temperature | -30°C to +55°C |
| Humidity | 5% to 95% – Non-condensing |
| Max Altitude | 2000 meters above sea level |
| Noise Level | Less than 30 dB |
| Dimensions | 26 × 38 × 15 cm |
| Input Voltage | AC380V±15% |
| Frequency | 50Hz |
| Current | 32A |
| RCD Protection | Type A + DC 6mA |
| Protection Level | IP55 – Water & Dust Resistant |
| Cable Length | 5 meters (output cable only) |
| Charging Modes | RFID (Optional) / Plug & Charge / App / Reservation |
| Applications | Indoor and Outdoor Use |
| Load Balancing | CT + Single/Three-phase Meter |
| Smart Support | OCPP / 4G / Ethernet |
| Display | Removable (Optional) |
✅ 1. Pre-Operation Inspection:
- Ensure the installation site is accessible and suitable for maintenance.
- Verify all charger accessories are securely connected and properly fixed.
- Make sure the AC leakage circuit breaker is installed correctly.
- Confirm the charging gun is properly placed and all accessories are complete.
⚡ 2. Powering On the Device:
- Turn on the circuit breaker after completing the inspection steps.
- Check the LED indicator to identify the status:
- 🟢 Solid Green Light: Charger is on standby.
- 🔵 Solid Blue Light: Charging in progress.
- 🔴 Solid Red Light: Charger fault detected.
📡 3. Adding the Charger to the Mobile App:
- Download the Smart Life app from your app store.
- Log in or create a new account.
- Enable Wi-Fi and Bluetooth on your phone.
- Tap “Add Device” and search for the nearby charger.
- Select your Wi-Fi network (preferably 2.4GHz), enter the password, then tap “Next”.
- Wait until you see “Added Successfully”.
Note: If Wi-Fi is not available at the installation site, you can enable a hotspot from one phone and temporarily connect the charger using another phone. Alternatively, configure the charger in advance at a location with Wi-Fi, then move it to the final site.
⚙️ 4. Device Settings via Mobile App:
- Tap the lock icon at the bottom of the screen.
- Enter the password 888888 to access device settings.
- Select from 3 main configuration menus:
- 📶 Network Settings: OCPP protocol, username, TLS, APN…
- 🔧 General Settings: Code type, custom power limit, load balancing, card setup, QR code…
- 🧠 Core Functions: Charging mode, energy meter, PEN protection, operational status, and more.
Warning: You only need to reconfigure the charger in the app if:
- The Wi-Fi network or password linked to the charger is changed.
- The device is deleted from the Smart Life app.
🧭 MEGA Smart Charger Interface – Menu Overview & Control Options
1. Main Interface:
After completing the charger setup, reboot the device to access the main interface. The screen will display the status of both charging guns (A and B), along with 3 primary buttons:
- Charging Inquiry: Displays rate details per time period.
- Charging History: Shows recent sessions including amount, cost, and time.
- Card Unlock: Unlocks a registered charging card.
2. Charging Fee Inquiry:
When tapping on “Charge Query,” a screen appears showing a table with:
- Time periods
- Unit price (per kWh)
- Service fees
3. Charging Record (Record Query):
Displays all past charging sessions, including:
- Card number – Balance status.
- Mode – Network or Plug & Play.
- Charged electricity amount, cost, and stop reason.
- Start and end time for each session.
4. Unlock Charging Card:
Used to unlock a card bound to the charging point. Once the card is swiped, the lock is released, and the charger can be used again.
5. Management Configuration:
- Admin Access: From the top-right corner of the interface, enter the admin portal.
- Change Password: Tap “Password Change” to modify the admin access code.
- System Settings: Includes 4 sections:
- 📦 Basic Parameters – ID, power, load balance, time.
- 🌐 Communication Settings – Wi-Fi, OCPP, APN, TLS.
- ⚙️ Core Functions – Charging modes, protections, meter type.
- 🔐 Card Management – Add or delete cards per port.
6. Basic Function Configuration:
You can customize the charging mode between:
- Online Version
- Single Mode
- Reservation Mode
- Plug and Charge
You can also enable/disable: Ground detection, PEN protection, TLS encryption, and other technical features.
7. Card Management System:
Allows adding or deleting cards associated with the charger. Only registered cards can be used in Standalone mode.
