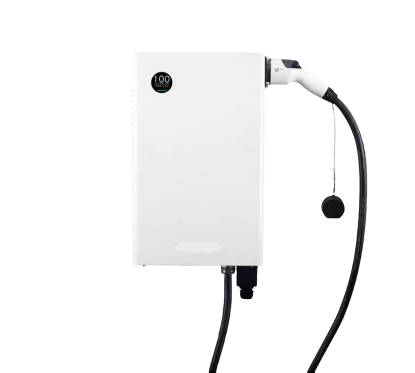

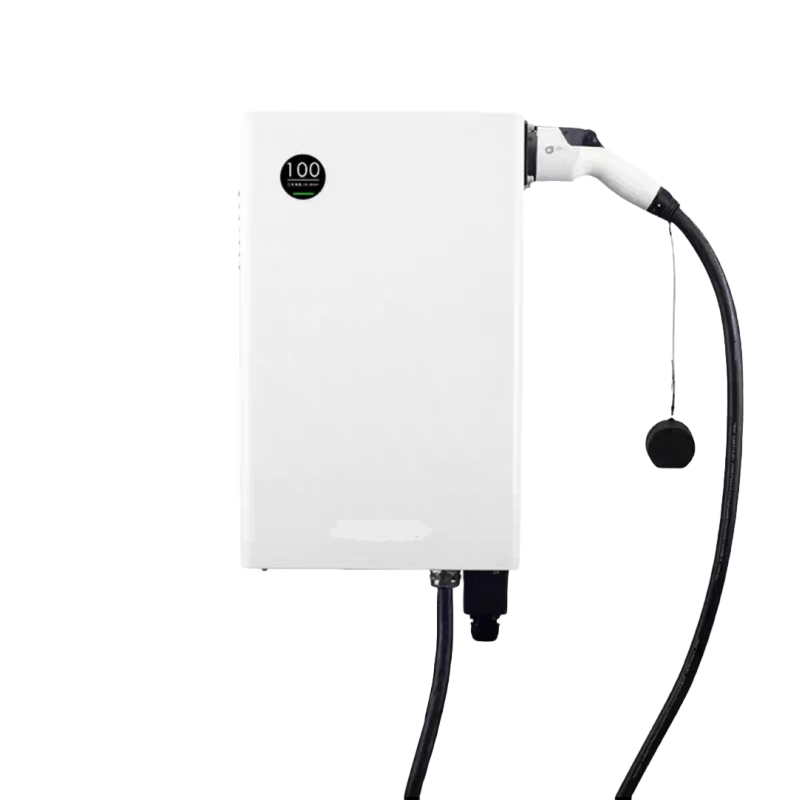

22kw GBT DC Fast charger for VW ID4 & ID6 With Card
AED6,000.00
22kw GBT DC Fast charger for VW ID4 & ID6 With Card
E-Catalog : Link
Input voltage range 380Va.c,+15%
Input Current 36A
Output power 22000W MAX
Output voltage 200-1000Vdc
Output current 65A MAX
Dimensions 630*393*145mm
Product weight 33kg (including packaging)
Technical SupportProduct setup and technical assistance available.
UAE DeliveryDelivery options available across the UAE.
Warranty SupportWarranty terms vary by product. Contact us for product-specific coverage.
22kw GBT DC Fast charger for VW ID4 & ID6 With Card
The Review On YouTube
Product Name: 22kW Intelligent DC Pile.
Reference standards GB/T 18487.1-2015, GB/T 27930-2015, NB/T 33001-2018, NB/T 33008.1-2018
Charging Modes :
Input voltage range 380Va.c,+15%
Input Current 36A .
Output power 22000W MAX.
Output voltage 200-1000Vdc.
Output current 65A MAX.
Efficiency ≥ 94%.
22kw GBT DC Fast charger for VW ID4 & ID6 With Card
Standby power consumption ≤ 12W.
Working temperature/humidity -30 ℃~65 ℃/5%~95%.
Storage temperature -40 ℃~80 ℃.
Protection level IP54
Working altitude ＜ 2000m
Charging cable length 5m
Dimensions 630*393*145mm
Product weight 33kg (including packaging)
Human machine interface LCD color screen (non touchable)
Installation method: wall mounted/column mounted
22kw GBT DC Fast charger for VW ID4 & ID6 With Card
Discover All Dc Chargers From Here
ME00765
Data sheet
- Weight
- 33kg
Specific References
No customer reviews for the moment.
22kw GBT DC Fast charger for VW ID4 & ID6 With Card
E-Catalog : Link
Input voltage range 380Va.c,+15%
Input Current 36A
Output power 22000W MAX
Output voltage 200-1000Vdc
Output current 65A MAX
Dimensions 630*393*145mm
Product weight 33kg (including packaging)
22kw GBT DC Fast charger for VW ID4 & ID6 With Card
AED6,000.00
