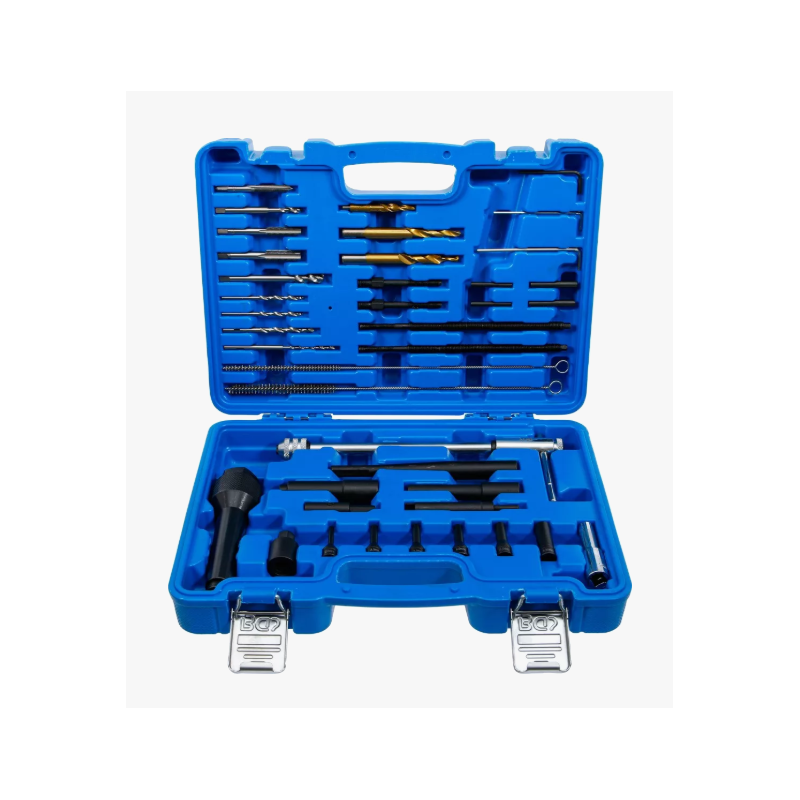

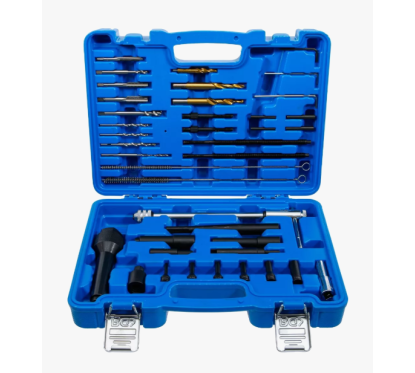

Glow Plug Removal Master Set ME01552C

This professional kit is designed for the assembly and disassembly of glow plugs and professional repair of glow plug threads.

Applications

• Thread cutter for regrinding glow plug threads (M8 x 1 and M10 x 1)
• Tools for cleaning the filament bore in the cylinder head
• Ratcheting tap holder

Scope of Delivery

• 5 Taps: 1/4" x 28UNF, 12 x 28UNF, M8 x 1.0, M10 x 1.0, M8 x 1.0
• 4 Twist Drills: 2.6 mm, 3.4 mm (x2), 4.4 mm
• 3 Step Drills for drilling out torn-off glow plugs:
  • 4.4 x 7 mm
  • 5.4 x 7 mm
  • 5.5 x 9 mm
• 2 Tie Bolts
• 2 Tension Spindles
• 4 Drill Centering Sleeves: 2.6 mm, 3.7 mm
• 3 L-Type Hex Wrenches: 2 mm, 2.5 mm, 3 mm
• 2 Round Steel Brushes: 5 x 300 mm, 7 x 300 mm
• 2 Tap Holders
• 1 Centering Device with Ball Bearing and Pulling Spindle
• 2 Spindle Nuts
• 2 Twist Drill Holders
• 1 Centering Sleeve
• 1 Pull-Out Sleeve
• 6 Calibration Inserts for Glow Plug Electrodes, 6.3 mm (1/4") Square Drive:
  • Sizes: 2.6 mm, 3.2 mm, 3.5 mm, 4.5 mm, 6.5 mm, 8.25 mm
• 1 Socket: 10 mm (3/8") Square Drive, E-Star E10
