GODIAG GT111 VW Audi CAN-Bus 3rd & 3.5th Generation

The Review On YouTube

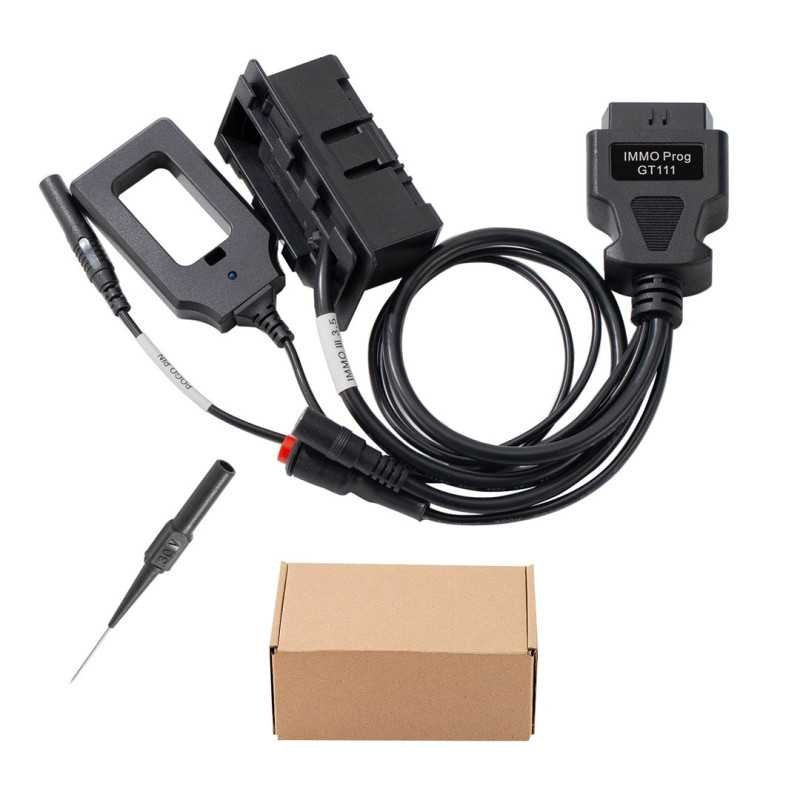

GODIAG GT111 VW Audi CAN-Bus 3rd & 3.5th Generation Dashboard IMMO Key Matching Test Platform with POGO PIN

Product Description:

The GODIAG GT111 for VW, Audi, Skoda, and Seat CAN-Bus 3rd & 3.5th generation dashboard IMMO key matching test platform is a specialized diagnostic tool designed for professional automotive workshops and locksmiths. It allows reading and writing of IMMO data directly from the dashboard using a POGO PIN connector, eliminating the need to remove components or disassemble the instrument panel. This device simplifies key synchronization, IMMO data analysis, and advanced ECU communication for vehicle security systems.

The GODIAG GT111 supports multiple brands including VW, Audi, Skoda, and Seat, making it an essential solution for technicians working on VAG group vehicles. Its CAN-Bus communication ensures accurate data exchange, while the POGO PIN design guarantees stable and safe contact during testing. The tool can also perform IMMO synchronization, mileage adjustment, and emergency key start area detection.

Diagnostic Tools from GODIAG

Product Weight: 185g

Compatible Devices:

The GODIAG GT111 can be used with a variety of professional diagnostic devices including HEX V2, VAGCOM VCDS 5053, VAS5054A, VAS6154, SUPER VAG K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, AUTEL, and more.

Key Features:

• Uses POGO PIN connection to safely read and write dashboard data.
• Supports offline dashboard connection and conversion to standard OBD2 format.
• Performs synchronization tests between key chips and IMMO instruments.
• Equipped with an independent ignition switch and illuminated key induction adapter.
• Stable and durable POGO PIN structure prevents damage to cables during use.
• Supports IMMO data reading, writing, and key matching functions for 3rd and 3.5th generation dashboards.

Smart IMMO System Emergency Start Detection:

The GT111 supports intelligent IMMO system emergency start area induction detection. Simply press the vehicle’s start switch and bring the key identifier close to the detection area — if the indicator light flashes, it means the system recognizes the emergency start zone. This function helps identify where to place a low-battery or dead key to start the car safely.

IMMO Start and Key Chip Test Results:

The GODIAG GT111 can analyze IMMO and key synchronization performance with precision:

• If the light flashes briefly then goes out – the IMMO and key chip are synchronized and working correctly.
• If the light flashes continuously – the key and IMMO are mismatched and require reprogramming.
• If no flash occurs – the vehicle’s IMMO system may be faulty and needs inspection.

Technical Specifications:

Brand	GODIAG
Model	GT111
Supported Vehicles	VW, Audi, Skoda, Seat
Weight	185g
Communication Type	CAN-Bus / OBD2
Main Connector	POGO PIN

Package Includes:

• 1pc x GODIAG GT111 for VW, Audi, Skoda, Seat CAN-Bus IMMO Test Platform with POGO PIN
