🔧 Tool Function & Necessity

Modern Mercedes-Benz mild-hybrid engines place the 48-volt Integrated Starter Generator (ISG) directly between the engine block and the transmission. Because the massive magnetic forces of the permanent magnet rotor pull heavily toward the stator, attempting to remove the rotor bracket without a specialized stabilization fixture can cause severe engine casing damage, component deformation, or physical injury.

This kit secures the alignment of the crankshaft and the ISG housing while you undo the primary connection hardware. It is required when servicing the timing chain, replacing the hybrid motor, or performing a complete engine overhaul.

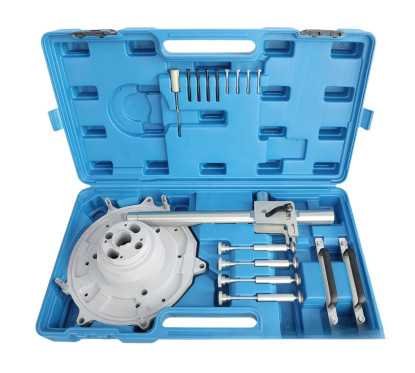

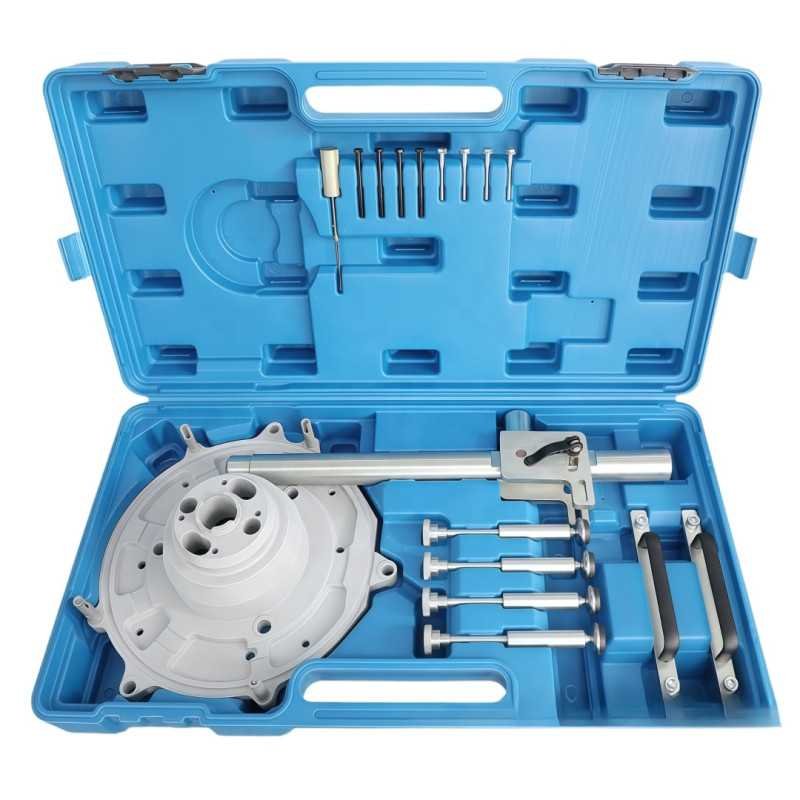

⚙️ Kit Specifications & Contents

• OEM Equivalent Part Number: 256-224-06-00
• Material: Heavy-duty hardened alloy steel designed to withstand extreme shear forces.
• Starter Motor Bracket Disassembly Tool: Main puller / press apparatus.
• Rotor Mounting Plate: Secures directly to the integrated starter generator structure.
• Fastening Plate & Guide Pins: Prevents off-axis movement or tilting during extraction.
• Storage Solution: Molded protective plastic carrying case.

🚗 Engine & Vehicle Coverage

The tool supports both inline 4-cylinder (M254) and inline 6-cylinder (M256) Mercedes-Benz mild-hybrid powertrains.

• M254 Engines: 1.5L and 2.0L variants.
• M256 Engines: 3.0L and 4.0L variants.
• Compatible Models: AMG GT 43 / 53, E53 AMG, CLS 53 AMG, S450, S500, GLS 450, and modern C260L variants.

🛠 Core Operation Steps

1. Remove the transmission and primary ISG electronic control unit housing.
2. Rotate the engine manually to Ignition Top Dead Center (TDC / OT).
3. Install the mounting plate flush against the integrated starter generator face.
4. Loosen factory fasteners connecting the ISG rotor to the crankshaft through the tool access points.
5. Engage the puller assembly to safely extract the heavy magnetized rotor while maintaining a perfectly uniform air gap and preventing internal damage.
