Alientech K-TAG Complete Set of Adapters -144300KAD4
Product Specifications
- Manufacturer: ALIENTECH
- Condition: New
- Weight: 7.5 KG (7500g)
- Dimensions: 40 × 50 × 18 cm
Description

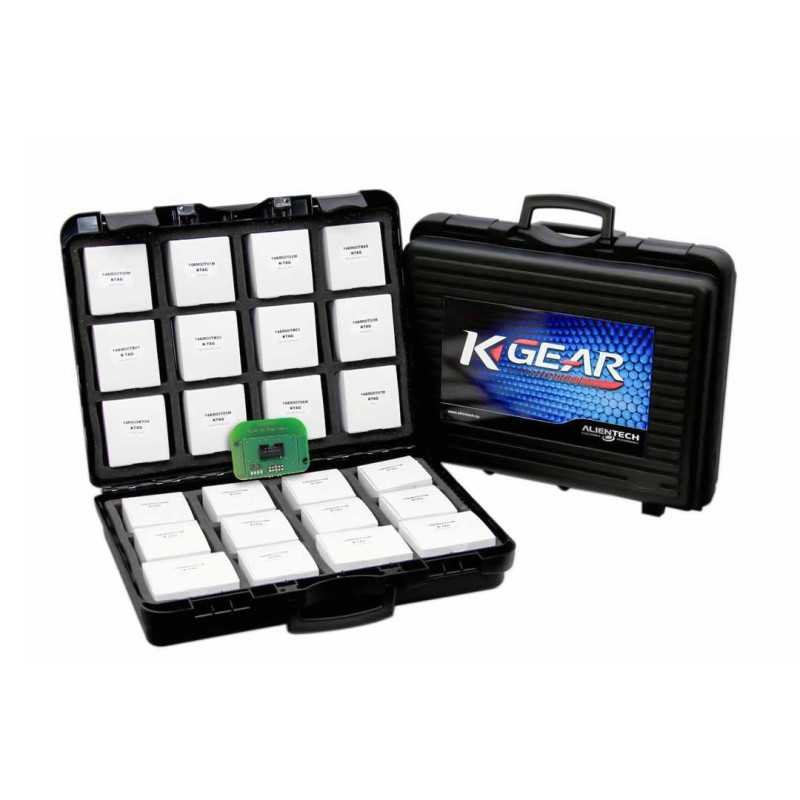

The K-TAG K-Gear Case includes all the necessary adapters for the positioning frame for ECUs equipped with:
- Infineon Tricore
- Motorola MPC5xx / MPC56xxx
- NEC 76F00xx
- Nexus MPC5xxx
- Renesas SH705x
- ST10Fxxx microprocessors
No soldering, no risk! With the adapter set, connect your K-Tag directly to the ECU board using dedicated programming probes designed for the most common ECUs.
Main Supported ECUs
- AC Delco E83
- Bosch: EDC16, EDC17, EDC7, ME7, ME9, MED17
- Chrysler NGC5
- Continental: CM2250, SIM, SIMOS, SID
- Delphi: CRD, DCI, DCM
- Denso: CAN, MB, PS, K-Line
- Detroit DDEC, EFI T6
- Magneti Marelli: IAW, MJD, MJ8DF
- Siemens SID, TRW EMS2 E5
Included Adapters
- Adapter Delphi DCM / DCI MOTOROLA MPC5xx
- Adapter Bosch MOTOROLA MCP5xx / ST10Fxxx
- Adapter Magneti Marelli Nexus MPC5xxx / MOTOROLA MPC56xxx
- Adapter Delphi / Nexus MPC5xxx
- Adapter Denso Renesas SH705x (WR/RD)
- Adapter Denso NEC 76F00XX (20pins / 26pins)
- Adapter Infineon Tricore ECU: Bosch MED17.9.7, MEDC17.9, EDC17C59
- Adapter Continental: SID208/209, SID807, Simos PCR 2.1
- Adapter EFI T6 Nexus MPC5xxx
- Adapter Multi-funzione for ECUs Denso SH725x
- Adapter Renesas Board SH725xxx (36 & 26)
- Pull-out Tips for Siemens, Magneti Marelli, Bosch EDC7 (MPC5xx)
- Grabber probes SMD (BGA)
- Cable Infineon Tricore PCR2.1 (rainbow flat cable)
Technical Highlights
- Direct connection to ECU board using probe pins
- No soldering required for most ECUs
- LED illumination decks for enhanced visibility
- Compatible with ECUs from major OEMs and chip manufacturers
- Securely housed in the K-Gear suitcase for portability and protection
Data Sheet Details (Samples)
Adapter: Bosch ST10Fxxx
Supported ECUs: Bosch EDC15, ME7
Description: Connect K-Tag directly using ST10Fxxx-specific probes.
Features: PCB with programming probes.
Supported ECUs: Bosch EDC15, ME7
Description: Connect K-Tag directly using ST10Fxxx-specific probes.
Features: PCB with programming probes.
Adapter: Magneti Marelli Nexus MPC5xxx
Supported ECUs: MJ8DF
Description: Adapter with LED lighting deck, Nexus MPC5xxx microcontrollers.
Features: PCB with programming probes and LED.
Supported ECUs: MJ8DF
Description: Adapter with LED lighting deck, Nexus MPC5xxx microcontrollers.
Features: PCB with programming probes and LED.
Adapter: Infineon Tricore ECU Bosch MEDC17.9
Supported ECUs: Bosch MEDC17.9
Description: LED-illuminated adapter for Tricore ECU.
Features: PCB with probes and LED.
Supported ECUs: Bosch MEDC17.9
Description: LED-illuminated adapter for Tricore ECU.
Features: PCB with probes and LED.
Accessory: Grabber probes SMD
Use: Establish direct connection on microprocessor pin.
Supported ECUs: Bosch EDC17, MED17
Material: Plastic and metallic components.
Use: Establish direct connection on microprocessor pin.
Supported ECUs: Bosch EDC17, MED17
Material: Plastic and metallic components.
Cable: Infineon Tricore PCR2.1
Description: Flat cable for ECUs Continental/Siemens Simos1.x & PCR2.1.
Features: Rainbow flat cable with wires.
Description: Flat cable for ECUs Continental/Siemens Simos1.x & PCR2.1.
Features: Rainbow flat cable with wires.
