VAS 6154 VCDS Diagnostic Tool
The diagnosis interface VAS 6154 with wireless network technology supersedes remote diagnosis head VAS 5054A and diagnosis interface VAS 5055. It makes wireless transmission of data possible from the interface in the vehicle to the diagnosis unit.
If a wireless connection is not possible/permissible, the USB module is used, which guarantees a reliable wired data transmission to the diagnosis unit.
It is still necessary to use remote diagnosis head VAS 5054A or diagnosis interface VAS 5055 in conjunction with the VAS-PC diagnosis software.
In infrastructure mode, several network-capable devices can be connected together (network subscribers).
For a wireless network, a WLAN access point is required. This access point forms the connection to WLAN-ready subscribers.
With point-to-point connection via a wireless network, VAS 6154 creates a radio network. VAS 6154 thereby adopts the role of a radio access point (Access Point). A direct connection is made between the diagnosis unit and the diagnosis interface VAS 6154.
Design and features
There are two equipment versions:
One version includes a wireless network and USB module One version has no wireless network module (the wireless network module can be retrofitted at any time provided national regulations permit).
Radio registration verified for the following countries:
A, AUS, B, BIH, BR, CDN, CH, CY, CZ, D, DK, E, EST, F, FIN, GB, GR, H, HK, I, IL, IND, IRL, IS, J, L, LT, LV, M, MEX,N, NL, NZ, P, PL, RA, RC, ROK, RUS, S, SGP, SK, TR, UA, UAE, USA, ZA
Dimensions: approx. 136x48x25mm
Weight: approx. 150g
Power supply: 8-18V via vehicle connector
Output: approx. 3.5W
Temperature range: Storage -20Â°C to +85Â°C, -20Â°C to +40Â°C in operation
Micro-controller: Freescale MPC512x with 400MHz
Random access memory: 256MB DDR RAM
Hard-disk: 16MB NOR, 8GB SD card
PC interface (wired): USB2.0 high speed, 480Mbit/s or fast Ethernet, 100Mbit/s (via LAN module)
PC interfaces (wireless): WLAN 802.11 ab/b/g/n 2T2R 300Mbit/s client mode (WPA2 EAP-TLS, WPA2 PSK)
AP mode (WPA2 PSK)

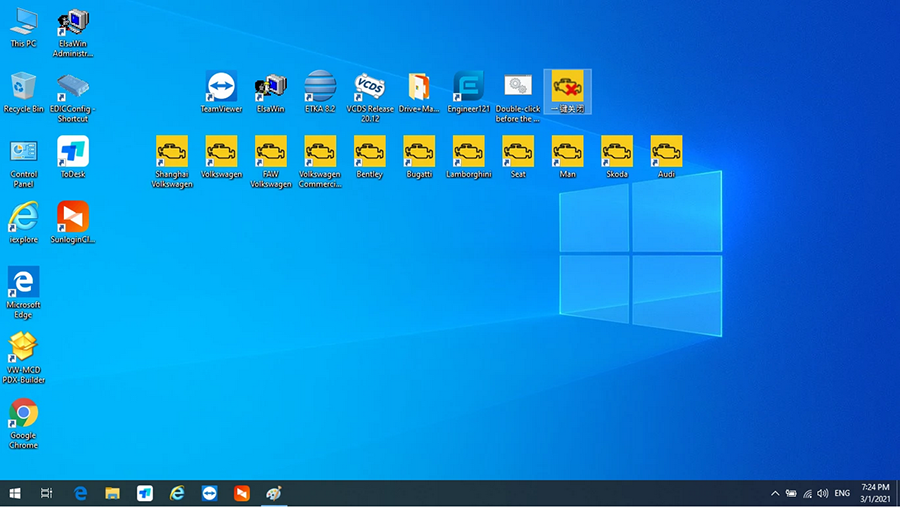

Operating system: Windows XP and wireless network
Internet browser: I-Explorer 6 (or higher)
Interfaces: 2x USB2.0 (or higher) for base station Ethernet, 100Mbit/s
Diagnosis interface VAS 6154 (complete unit):
Interface module VAS 6154/1
Base station VAS 6154/2
Y USB cable VAS 6154/3
USB module VAS 6154/4
Wireless network module VAS 6154/5
Adhesive label (module lettering) VAS 6154/6
Storage case VAS 6154/8
Abridged instructions on paper (4 languages) D, GB, F, E Operating instructions and quick reference guide in PDF (all 21 languages) accessible via web browser
