Featuring a new design and upgraded hardware, the LAUNCH O2-2 Scopebox is a versatile and easy to use add-on module that can detects high level faults on various electrical components, such as sensors, acturators and circuits. By integrating with the X-431 series scan tools via O2-2 application, it delivers accurate and conclusive diagnostic faults that enable the shop and technician to enlarge their scan tool’s functionality.
Launch X431 O2-2 Advanced Scopebox Function:
- Provides all kinds of testing applications on automotive parts (including circuits, sensors, actuators, ignition etc.).
- Menu Includes the following options:
- Measure: It provides 23 parametric measurement items.
- Save: It allows you to save the current waveform as a reference waveform for future comparison.
- Display: Sets the display mode of the waveform.
- UserSetting: The following items are available: storage depth, factory reset, self-adjust (self-calibration), and save & recovery.
- About: Displays the detailed information of the app.
- Integrate with X-431 series scan tools (such as X431 PRO ELITE, X431 Throttle, X431 Pad II AE, X431 Torque, X431 Turbo, X431 Pro3S , X431 PAD V, X431 PAD VII, X431 IMMO Elite, X431 IMMO PLUS) through the O2-2 application for conclusive diagnostic results.
Launch X431 O2-2 Advanced Scopebox Features :
- ECU troubleshooting and Diagnostics
- Features the alility to record and palyback high-resolution waveform data for future analysis. One key enable function allows the suers to capture
- a particular waveform which makes the process 70% more efficient as compared to other scopes
- Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch
- Ability to input names and characters directly by clicking on the virtual keyboard, this operation streamlines the process and contributes to 90% efficiency
- Buffer memory up to 50M
- Use the zoom in/out feature to review precise details
- Customizable personal system settings that can be saved as configuration files for viewing
- The Self-calibration function allows optimization of the oscillosope signal path for maximum measurement accuracy
- Magnifies waveform math operations, such as affition, subtraction, multiplication and FFT function for high level waveform anlysis
- Multiple automotive tests that include circuits, sensors, actuators, ignition tests and more
- Multi language user interface
- USB Sunc data transfer to external devices such as laptoop, tablet, etc..
Launch X431 O2-2 Advanced Scopebox Specification:
| Channels | 4 |
| Bandwidth | 100MHz |
| Rising Time | 3.5ns (typical) |
| Accuracy | ±3% |
| Input Impedance | 1M ±1.5% |
| Input Type | Single-ended, BNC Connector |
| Input Coupling | DC, AC |
| Overload Protection | ±200V on single input |
| Timebase Ranges | 1ns~1ks (1 Channel) 1ns~1ks (2 Channels) 1ns~1ks (4 Channels) |
| Vertical Resolution | 8bits |
| Buffer Memory | 10M (for 4 Channels) |
| Power Interface | USB port, DC IN port |
| Data Exchange Via | USB |
| Trigger Mode | Normal, Auto and Single SEQ |
| Advanced Triggers | Edge, Pulse width |

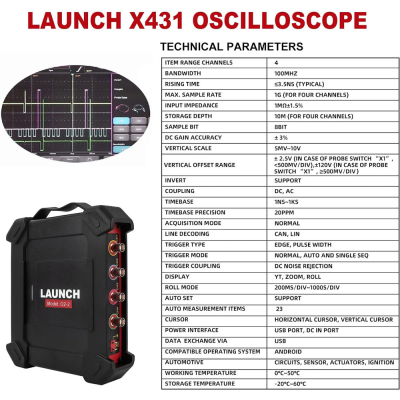

Launch X431 O2-2 Advanced Scopebox Technical Parameters:

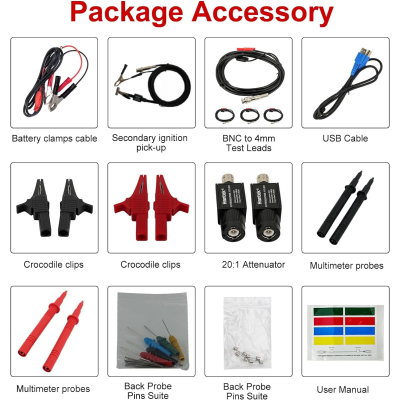

Launch X431 O2-2 Advanced Scopebox Accessories:
20:1 attenuator
BNC test leads: 4 mm
Cable for alligator clips
Alligator clips
Secondary ignition starter
Multimeter probes
Rear probe pin assembly
USB cable
Detailed Comparison Between Launch O2-2 Scope Box and Launch O2-1 Scope Box
| Model | O2-1 | O2-2 |
| Channel | 4 | 4 |
| Bandwith | 100MHz | 100MHz |
| Rise Time | ≤3.5ns(typical) | ≤3.5ns |
| Maximum sampling rate | 1Gbps(for four channels) | 1Gbps |
| Input resistance | 1MΩ±1.5% | 1MΩ±1.5% |
| Storage depth | 50M | 10M |
| Number of sampling bits | 8bit | 8bit |
| vertical accuracy | 3% | 3% |
| Vertical gear | 5mV~10V | 5mV~10V |
| Inverting | Support | Support |
| Channel coupled | DC, AC | DC, AC |
| Time base gear | 5ns~1ks | 1ns-1ks |
| Time base accuracy | 20ppm | 20ppm |
| Sampling mode | Normal | Normal |
| CANBus decoding | CAN, LIN | CAN, LIN |
| Trigger type | Edge, Pulse width | Edge, Pulse width |
| Trigger mode | Normal, Auto and Single SEQ | Normal, Auto and Single SEQ |
| Trigger coupling | DC, Noise rejection | DC, Noise rejection |
| Math | Double waveFFT | Double waveFFT |
| Display | YT、Zoom、Roll | YT、Zoom、Roll |
| Roll mode | 200ms/div~1000s/div | 200ms/div~1000s/div |
| Auto configuration | Support | Support |
| Auto measurement | 23 | 23 |
| Cursor | Horizontal cursor, Vertical cursor | Horizontal cursor, Vertical cursor |
| Powered by | USB port, DC IN port | USB port, DC IN port |
| Data transmission method | USB | USB |
| Vehicle configuration options | Circuits, sensor, actuators, ignition | Circuits, sensor, actuators, ignition |
| Operating temperature | 0℃~50℃ | 0℃~50℃ |
| Power supply range | USB:5V/1A DC:12V/24V |
USB:5V/1A DC:12V/24V |
| Compatibility | Different tablet resolutions require different APPs | One APP can be compatible with multiple tablet resolutions |
| Multi-touch gestures | No | Supports 2-point touch, the waveform can be zoomed in or out vertically or horizontally |
| Vehicle configuration | No | Each test project can support online help documentation (help documentation will be compiled according to needs later) |
| Firmware upgrade | Manual upgrade | Support online upgrade |
| Trigger | Waveform observation cannot be expanded during normal trigger waiting. | Can be used normally during normal trigger waiting. |
| Demo function | No | Yes |
| Split-screen | No | Yes |
| Sampling rate | Single channel 1G/s, more than 2 channels only 250M/s | Single channel 1G/s, 2 channels 500M/s, multiple channels 250M/s |
| Start time | 2-3S | about 16s |
| Power consumption | about 6W | about 7.5W |

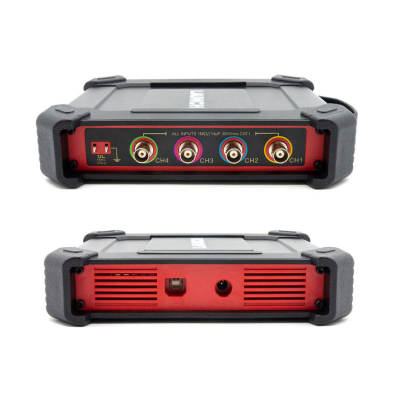

How to Connect Launch X431 O2-2 Advanced Scopebox Cables?
Different application scenarios require different connection methods (no matter which application scenario, the following connections are required):
First, power the oscilloscope box through the double-clip power cable: Connect one end of the double-clip power cable to the power interface of the oscilloscope box, and the other end to the vehicle battery to draw power (red is connected to the positive pole, black is connected to the negative pole).
Note: * PADVII series tablets support USB power supply.
2. Connect the Type B terminal of the USB cable to the Type B interface of the oscilloscope, and connect the other end to the USB interface of the diagnostic device.
Launch X431 O2-2 Advanced Scopebox Package Includes:
1pc x Launch O2-2 main unit
4pcs x HT 30 test lines
1pc x HT25 secondary ignition pick-up line
1pc x battery clip cable
1pc x USB cable
2pcs x HT201 attenuator
20pcs x piercing needles
2 pairs x multimeter probes
2 pairs x crocodile clips
5pcs x colored 4 female probes
4pcs x clipper fuses(5*20mm)
2pcs x screw head
1pc x user manual
1pc x color label
1pc x packing list
