Overview – T‑Series Jump Starter

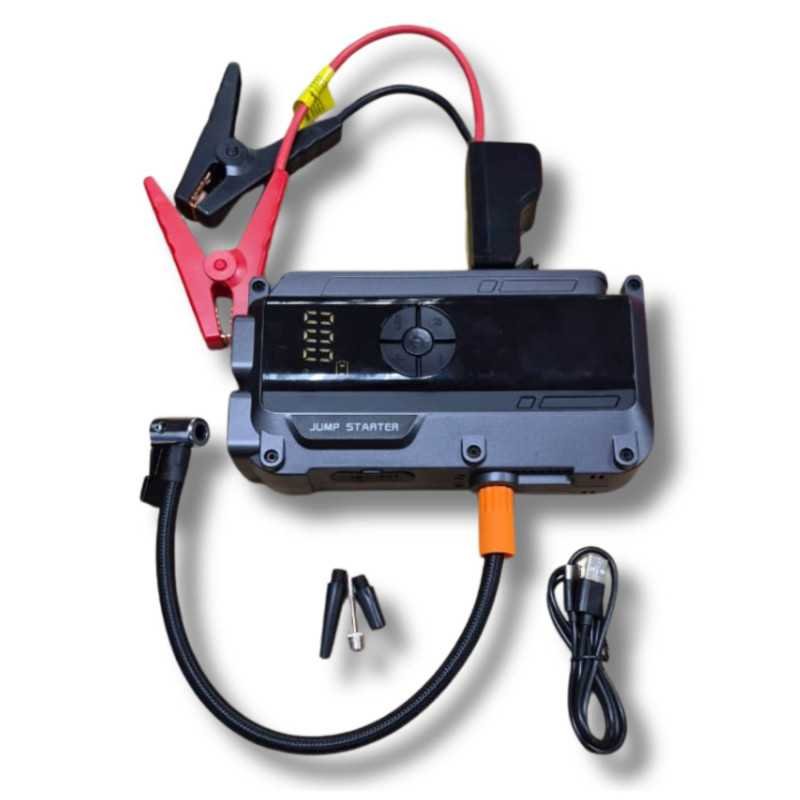

The T‑Series Jump Starter is a multi‑function 12V emergency device that combines a jump starter, portable power bank, LED lighting, and a built‑in air pump. Designed for everyday roadside use, the T‑Series Jump Starter provides reliable support for vehicle starting, charging, and inflation.

Function and Components – T‑Series Jump Starter

The device includes a LED light, USB output, Type‑C output port, inflation nozzle, power switch, power bank/air pump start button, swing key, plug key, lighting switch, and an LED display. These components allow full control of lighting, charging, jump starting, and inflation functions.

Packing List

The package includes: Jump starter, battery clip, car charger clip, inflation nozzle, and a paper box or Oxford bag.

Technical Specifications – T‑Series Jump Starter

The T‑Series supports multiple capacities including 12000mAh, 16000mAh, 20000mAh, 24000mAh, 30000mAh, 40000mAh, 50000mAh, 60000mAh, and 80000mAh. It provides a USB 5V/2A output and a Type‑C 5V/2A output. The jump starter delivers a 500A start current and a 1000A peak current. Operating temperature ranges from -20°C to +40°C.

Lighting Function

The LED light can be activated using the lighting switch. The device supports multiple lighting modes including steady illumination and emergency flashing modes.

Emergency Power Function

The emergency power function is activated using the power bank/air pump start button. The device can supply power to electronic products through USB or Type‑C output ports.

How to Start a 12V Car

To start a 12V vehicle, connect the battery clips to the car battery terminals as shown in the diagram. After confirming proper connection, start the vehicle and then remove the clips safely.

Charging the Device

The unit can be charged using the DC input port. Connect the charger to the device and allow it to recharge fully before use.

Charging Electronic Products

Electronic devices can be charged through the USB or Type‑C output ports. Connect the cable to the device and charging will begin automatically.

Inflation Function

The built‑in air pump can be activated by connecting the inflation nozzle and pressing the air pump start button. The LED display shows real‑time pressure readings during inflation.

Conclusion – T‑Series Jump Starter

The T‑Series Jump Starter provides a complete emergency solution with jump starting, air inflation, LED lighting, and portable charging. Its compact design and multi‑function capability make it ideal for daily drivers and emergency roadside use.
