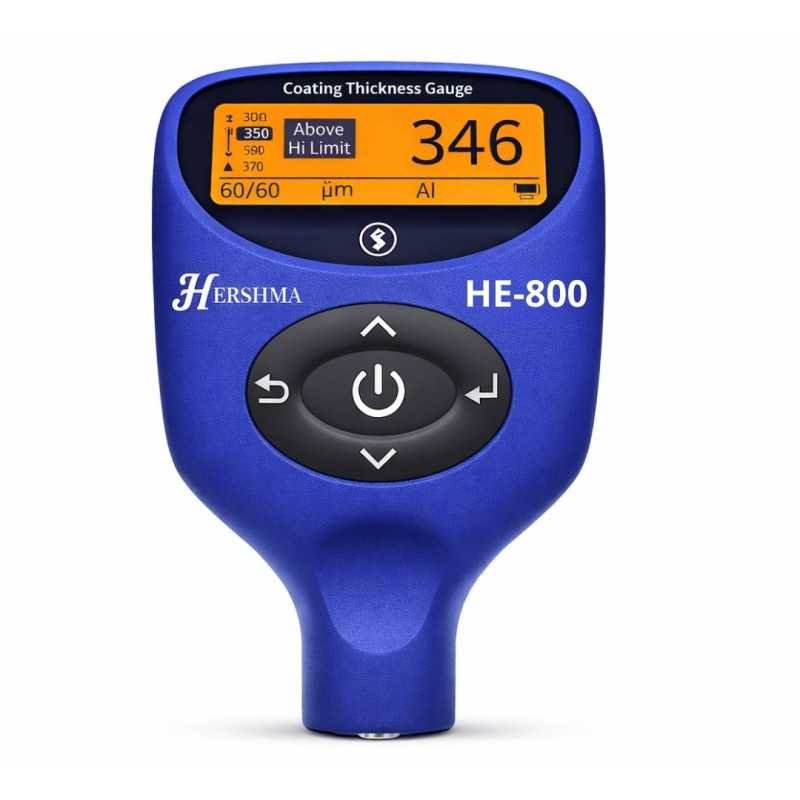

Hershma HE-800 Paint Thickness Gauge

The Hershma HE-800 Coating Thickness Gauge is a professional high-precision instrument designed for measuring paint and coating thickness on metal surfaces. It is widely used in automotive inspection, car body repair workshops, paint shops, manufacturing quality control, and metal coating inspection.

The device uses advanced measurement technologies including Hall Effect and Eddy Current principles, allowing it to accurately measure coating thickness on both ferrous metals (iron/steel) and non-ferrous metals (such as aluminum).

The HE-800 features automatic substrate identification, which means the instrument automatically detects whether the surface is Fe (iron/steel) or NFe (non-ferrous metal) and switches the measurement mode accordingly. This makes operation fast and simple without the need for manual adjustments.

Its high-contrast backlit LCD display provides clear readings and important information such as measurement values, substrate type, high/low limits, and battery status.

The compact ergonomic design allows easy one-hand operation, making it ideal for field inspection and workshop use.

Typical Applications

The Hershma HE-800 is commonly used for:

• Automotive paint inspection

• Detecting repainted or repaired vehicles

• Body shop and collision repair inspections

• Industrial coating thickness measurement

• Metal surface protection coating inspection

• Quality control in manufacturing

Technical Specifications

Brand: Hershma
Model: HE-800

Measuring Range:
0 – 5000 µm

Measuring Principles:
Hall Effect for ferrous substrates
Eddy Current for non-ferrous substrates

Accuracy:
±(3% + 2µm)

Measurement Units:
µm / mil

Measurement Speed:
Approx. 0.5 seconds

Probe Type:
Integrated precision probe

Display:
Backlit LCD digital display

Power Supply:
2 × AAA batteries

Operating Temperature:
0°C – 50°C

Storage Temperature:
-20°C – 60°C

Design:
Compact handheld device suitable for field use

Key Features

✔ High-precision coating thickness measurement
✔ Automatic detection of Fe and NFe substrates
✔ Ideal for automotive paint inspection
✔ Fast measurement in about 0.5 seconds
✔ Backlit LCD display for easy reading
✔ Ergonomic handheld design
✔ Reliable and durable for workshop and industrial use
