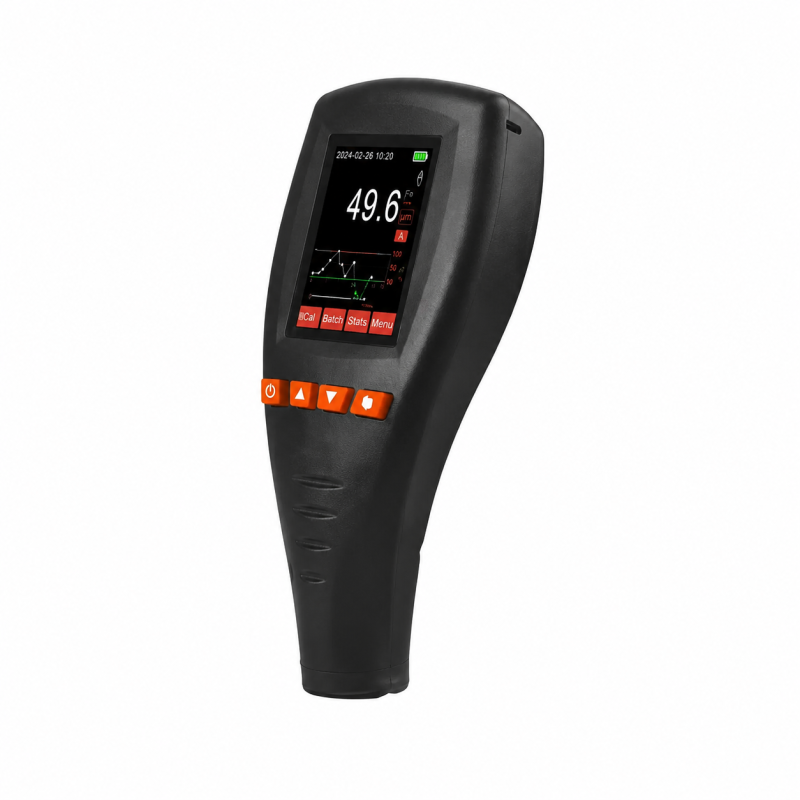

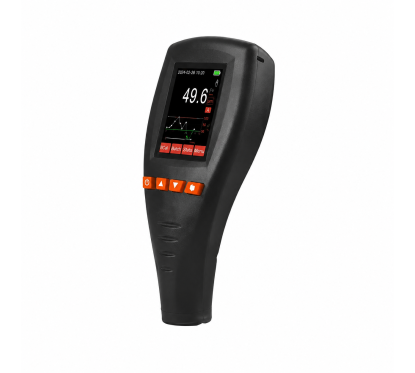

EC‑555 Paint Coating Thickness Gauge – 2000μm Dry Film Thickness Gauge

The EC‑555 Coating Thickness Gauge is a professional instrument designed for nondestructive measurement of paint, coatings, and dry film thickness on automotive and industrial metal surfaces. With a measuring range of 0–2000μm, the EC‑555 provides accurate readings for ferrous and non‑ferrous metals, making it ideal for car inspection, paint quality control, and industrial coating analysis.

Equipped with a ruby probe, a 2‑inch color display, and Bluetooth + mobile APP support, the EC‑555 delivers high‑resolution readings down to 0.1μm. The device offers an accuracy of ±(3%+1μm), full statistical analysis, curve and bar chart display, trend charts, and standardized menu navigation.

The EC‑555 supports zero calibration, multi‑point calibration, USB data transfer to PC, adjustable backlight, automatic rotation, adjustable sound volume, and auto shut‑down. The optional EC‑555SE external probe provides additional flexibility for measuring curved or narrow surfaces.

Key Features

• Ruby probe for high durability
• 2‑inch color screen
• Bluetooth + mobile APP
• Car mode / General mode
• Resolution up to 0.1μm
• Accuracy ±(3%+1μm)
• Range 0–2000μm
• Curve, bar chart, and trend chart display
• Full statistical analysis
• Zero & multi‑point calibration
• External probe optional (EC‑555SE)
• Max measuring speed: 2 readings/s
• Auto rotation + adjustable backlight
• Volume adjustable
• Auto shut‑down + low battery protection

Technical Specifications

EC‑555 Coating Thickness Gauge
