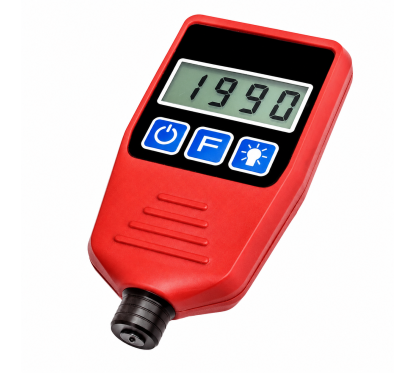

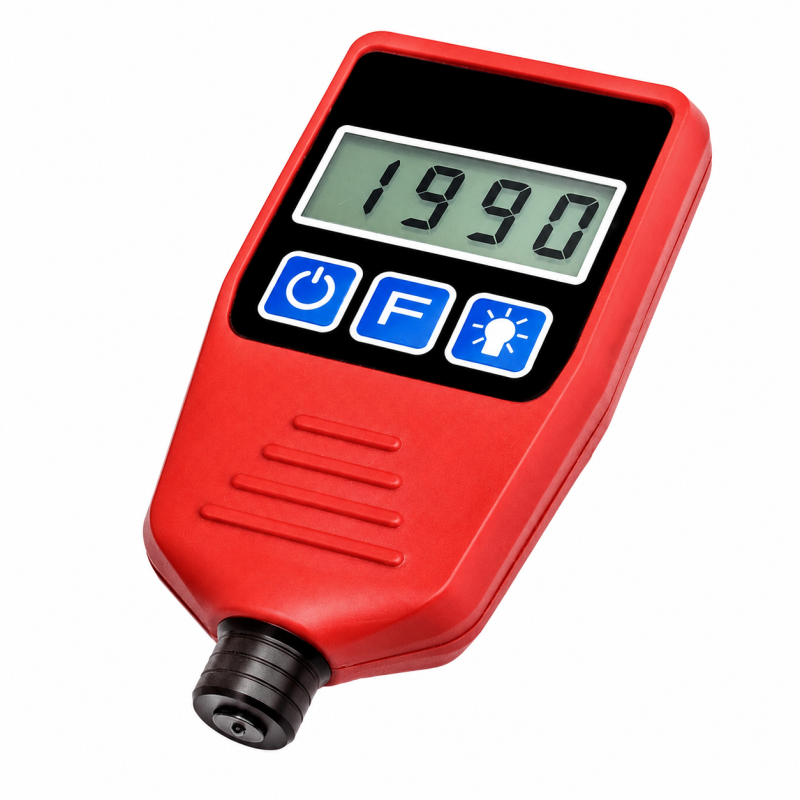

P‑13‑AL Coating Thickness Gauge

The P‑13‑AL Coating Thickness Gauge is a highly advanced paint inspection device designed for automotive professionals, detailers, and industrial coating specialists. As an upgraded version of the DX‑13‑AL meter, the P‑13‑AL Coating Thickness Gauge offers increased accuracy, a wider measuring range, and a precision ball probe that allows reliable measurement on curved surfaces, edges, and locations inaccessible to flat probes.

This professional gauge automatically detects the substrate material and displays clear indicators on the screen: "FE" for steel and galvanized steel, and "AL" for aluminum. This automatic recognition ensures fast, consistent, and reliable readings, making the P‑13‑AL Coating Thickness Gauge ideal for evaluating car body panels, identifying repainted sections, and verifying coating thickness in industrial environments.

The device features a super‑precise ball probe with a clamp for stable readings, a large three‑color backlit display, and a built‑in LED flashlight for use in low‑light conditions. With sixteen work modes, a sound hint system, and durable construction, the P‑13‑AL Coating Thickness Gauge delivers dependable performance even in demanding situations. It operates on two LR3 alkaline batteries, offering up to 50 hours of working time, and includes automatic shutdown after two minutes of inactivity.

The P‑13‑AL Coating Thickness Gauge provides a measuring range of 0–5000μm for steel and 0–2000μm for aluminum. Measurement resolution is optimized for accuracy: 1μm up to 500μm, 10μm up to 2000μm, and 100μm above 5000μm. The device is CE‑certified and manufactured in Poland, ensuring high quality and long‑term reliability.

Key Features of the P‑13‑AL Gauge

• Automatic measurement on steel, galvanized steel, and aluminum
• Precision ball probe for curved and difficult surfaces
• Wide measuring range: 0–5000μm (steel), 0–2000μm (aluminum)
• High‑accuracy resolution: 1μm / 10μm / 100μm
• Three‑color backlit display
• Built‑in LED flashlight
• Sixteen work modes
• Sound hint system
• Power: 2×1.5V LR3 alkaline batteries
• Up to 50 hours working time
• Operating temperature: −20°C to 40°C
• Automatic shutdown after 2 minutes
• CE certified
• Polish‑made product

Package Contents – P‑13‑AL Coating Thickness Gauge

• P‑13‑AL Coating Thickness Gauge
• User manual
• 2× LR3 1.5V alkaline batteries
• Calibration plates: FE & AL
