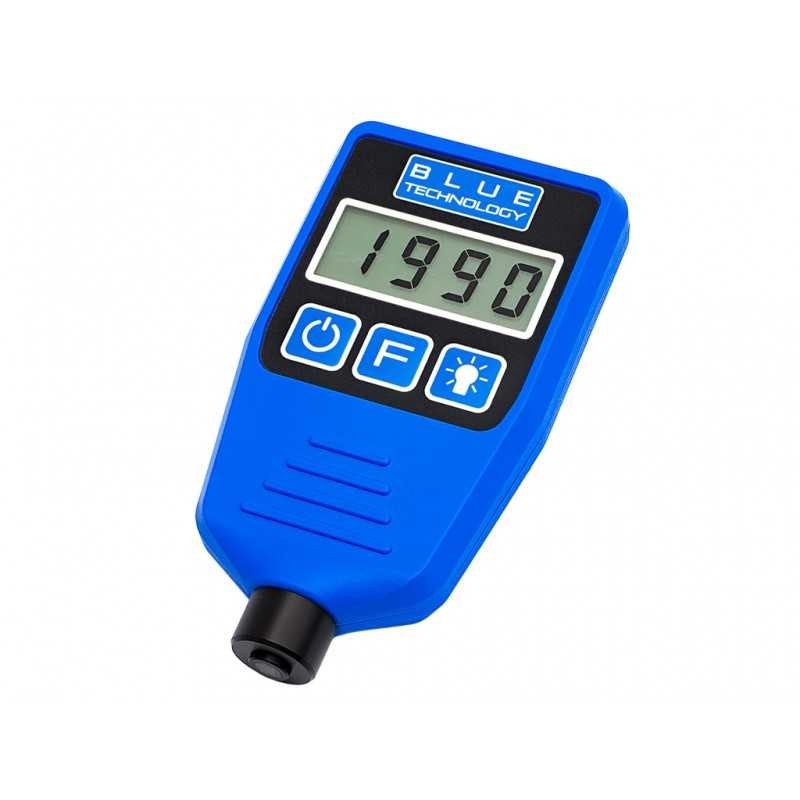

Coating Thickness Gauge DX‑13‑AL

The DX‑13‑AL Coating Thickness Gauge is an advanced paint thickness measurement device designed for automotive inspection, detailing professionals, and industrial coating analysis. As an extended version of the MGR‑13‑AL meter, the DX‑13‑AL Coating Thickness Gauge features a flat probe with a clamp, providing increased stability, improved resolution, and more accurate readings on both flat and slightly curved surfaces.

This professional gauge automatically detects the type of substrate and displays clear indicators on the screen: "FE" for steel and galvanized steel surfaces, and "AL" for aluminum surfaces. This automatic recognition ensures fast and reliable measurements, making the DX‑13‑AL Coating Thickness Gauge ideal for evaluating car body panels, identifying repainted areas, and verifying coating thickness in industrial environments.

A unique feature of the DX‑13‑AL is its three‑color illuminated display, which provides instant visual guidance:
Green – original paint
Orange – two layers of paint
Red – filler or putty This color assistant helps users quickly interpret results without needing technical knowledge.

The device offers a measuring range of 0–3000μm for steel and 0–2000μm for aluminum. Measurement resolution is optimized for accuracy: 2μm up to 500μm and 10μm above 500μm. The DX‑13‑AL includes a large backlit display, built‑in LED flashlight, sixteen work modes, and a sound hint system for easier operation.

Powered by two LR3 alkaline batteries, the DX‑13‑AL Coating Thickness Gauge provides up to 50 hours of working time. It operates in temperatures from −20°C to 40°C and automatically shuts down after two minutes of inactivity. The device is CE‑certified and manufactured in Poland, ensuring high quality and durability.

Key Features of the DX‑13‑AL Gauge

• Automatic measurement on steel, galvanized steel, and aluminum
• Flat probe with clamp for stable readings
• Three‑color illuminated display (green, orange, red)
• Built‑in LED flashlight
• Measuring range: 0–3000μm (steel), 0–2000μm (aluminum)
• Resolution: 2μm up to 500μm, 10μm above 500μm
• Sixteen work modes
• Sound hint system
• Power: 2×1.5V LR3 alkaline batteries
• Up to 50 hours working time
• Operating temperature: −20°C to 40°C
• Automatic shutdown after 2 minutes
• CE certified
• Polish‑made product

Package Includes – DX‑13‑AL Coating Thickness Gauge

• DX‑13‑AL Coating Thickness Gauge
• User manual
• 2× LR3 1.5V alkaline batteries
• Calibration plates: FE & AL

DX‑13‑AL Coating Thickness Gauge
