GODIAG GT105 Full Version IMMO ECU Prog
AED350.00
GODIAG GT105 Full Version IMMO ECU Prog AD OBDII Break Out Box ECU Connector
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Fast Delivery(edit with the Customer Reassurance module)
Product Introduction:
GODIAG ECU IMMO Prog AD GT105 is a special connection adapter developed for automobile maintenance technicians, anti-theft matching technicians, ECU programming engineers, etc. It is used for short-circuiting OBD2 in the car for anti-theft activation matching, ECU diagnosis and programming connection, and drawing power from the vehicle’s battery for outdoor on-site vehicle maintenance. Full protocol OBD2 jumper is used to connect ECU for ECU programming via OBD2 way such as MMPS, FGTECH, KESSV2, BYSHUT, DISPROG, etc.
KESS V2 ECU connection diagram
KESS V2 ECU connection diagram

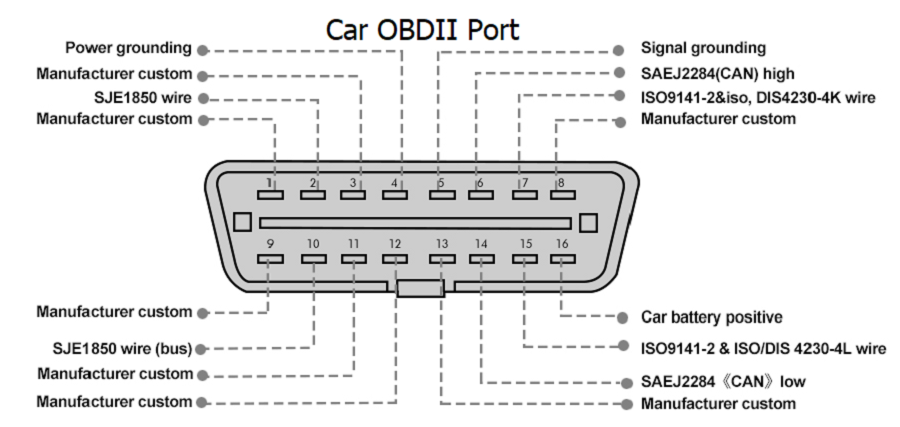

GODIAG GT105 is equipped with PWM+(PIN2), CANH(PIN6), CANL(PIN14), K-line(PIN7) signal communication indicators. When there is data communication, the corresponding protocol indicator will flash, therefore the communication status can be judged and you can also determine whether the diagnostic programming device is able to communicate.
GT105 provides OBD2 independent PIN4 body GND, PIN5 signal GND, which is convenient for some modules to be used for special programming. In addition, with the OBD2 full protocol ECU programming cable, users can also connect the ECU in the studio to adjust the ECU programming power. The device has PWM+(PIN2), CANH(PIN6), CANL(PIN14), K-line(PIN7) signal communication indicators. When there is data communication, the corresponding protocol indicator will flash. Users can judge the communication status, and also can judge whether the diagnostic programming device can communicate.
GT105 Highlights：
A full-protocol ECU connection line for ECU programming power adjustment
OBD2 independent PIN 4 body GND, PIN5 signal GND for special programming of some modules.
PIN4 and PIN5 can be switched between short-circuit and non-short-circuit.
PIN4 and PIN5 can be switched between short-circuit and non-short-circuit.
Standard OBD2 independent PIN4, PIN5.
Pure copper female seat supports repeated insertion and removal, and has a long service life.
Battery clip treated with environmentally friendly salt spray, with a thickness of 0.5mm.
The DC car battery cable adopts 0.75mm² 2-core sheathed cable, which supports DC5.5*2.5/ DC5.5*2.1 interface.
The DC connector has a resettable 7A fuse.
DC power interface, dedicated laboratory power connector.
DC power interface, dedicated laboratory power connector.
GT105 Functions:
1. IMMO AD power adapter function. After 2016, for Ford all smart keys lost, GT105 cooperates with VVDI equipment (OBDSTAR, AUTEL,) and other anti-theft matching equipment to program the keys.
2. All car keys lost matching---wake up the meter or wake up the anti-theft ECU. (Support VAG 4th and 5th generation anti-theft, Toyota ECU synchronization, auxiliary Mitsubishi all key lost matching or all lost remote control key setting, old Porsche Cayenne car for anti-theft key learning.)
3. VPW, CANH, CANL, K-Line indicator lights can judge the communication status between the vehicle and the diagnostic programming device. (If the product is used to connect the device, the user can simply judge whether the diagnostic programming is normal or not according to whether the device can send communication.)
4. The GT105 power adapter cable obtains 12V power from the car battery. (For programming equipment such as Xhorse Key Tool Plus Pad, VVDI Prog, CGDI Prog, IM608, etc., it provides 12V power supply when they need power outdoors, so as to read the data of BMW BENZ anti-theft ECU, or other car ECUs, and finally realize the on-site maintenance of outdoor faulty vehicles. )
5. Provide 12V power supply for the key cutter (12V).
Full Protocol OBD2 Jumper Functions:
1. Supports DC power supply
2. Support safety protection banana head super programming dedicated connection port power supply.
3. Independent GND4, GND5 [meet the needs of special ECU programming].
4. With boot GND4 clip, compatible with programming equipment such as MPPS, FGTECH, KESSV2.
5. With GND4 GND5 short-circuit switch [some ECUs need to be switched to short-circuit mode when programming].
Note: The switch of GND4-5 is normally pressed to make it light. When some ECUs need to be independently connected to GND4 and GND5, release the switch.
6. With ignition analog switch [equipped with 1 large and 2 small dedicated ignition cables].
7. Support standard obd2 full protocol connection [double K line, double CAN line], 3 large and 2 small power plugs, 4 large GND, 4 small GND.
8. Equipped with CAN protocol communication resistance.

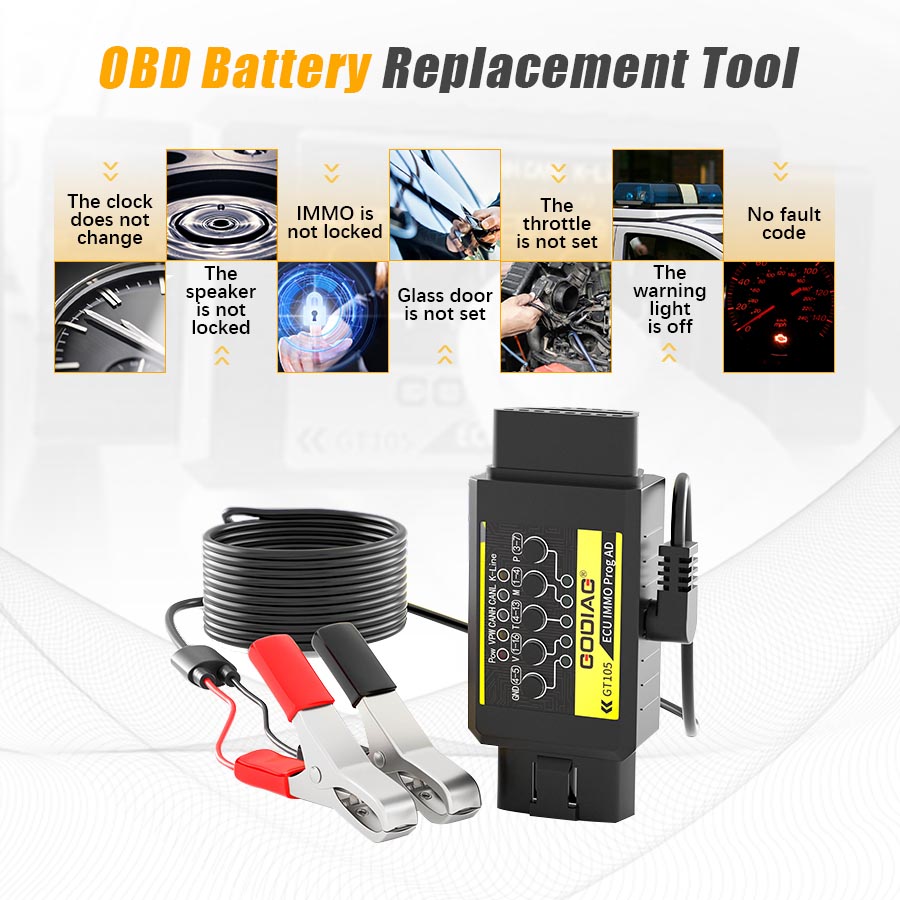

GT105 - OBD Battery Replacement Tool
Realize the uninterruptible power supply during the battery replacement, so it can prevent data loss, key failure or re-matching caused by power interruption during the battery replacement.
With GT105, you can enjoy the functions listed below during the battery replacement:
1.The clock does not change. 2.The speaker is not locked. 3.IMMO is not locked.
4.Glass door is not set. 5.The throttle is not set. 6.The warning light is off. 7.No fault code.
Indicator Light Meaning：
ECU Connection Diagram
ECU Connection Diagram
Package Includes:
1pc x GT105 host
1pc x Power cord with battery clip
1pc x Full protocol OBD2 jumper
1pc x Full protocol OBD2 jumper
