BB20 Professional Paint Coating Thickness Digital Tester Meter Gauge
BB20 Professional Paint Coating Thickness Digital Tester Meter Gauge
Manufacturer: Trotec
Condition: New
Trotec BB20 Coating Thickness Gauge Dual sensor for measuring the thickness of non-magnetic coatings on all magnetic and non-magnetic metals
Trotec Bb20 Coating Thickness Gauge has an innovative dual sensor which enables you to measure the thickness of non-magnetic coatings like paint and varnishes, synthetic coatings, zinc coatings, enamel or chrome as well as steel or iron and non-iron metals like aluminum, magnesium, titanium etc.

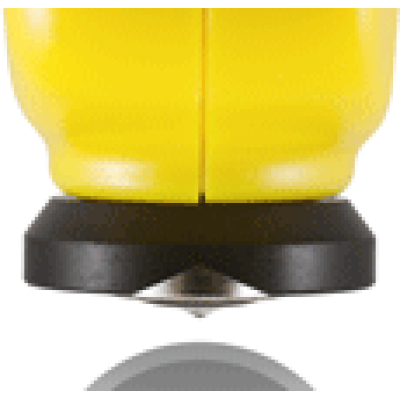

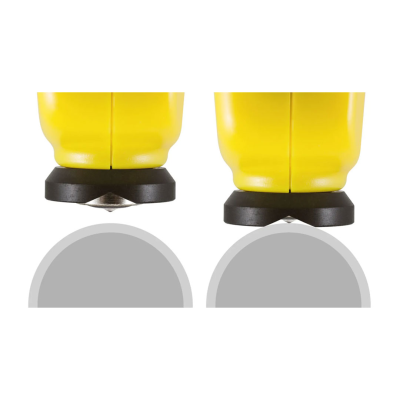

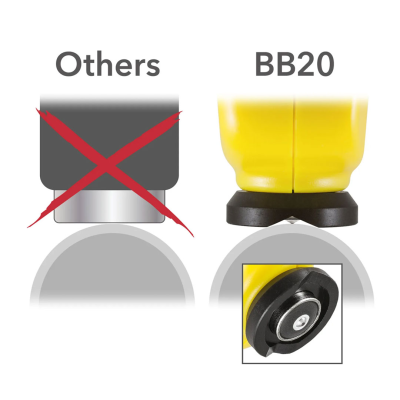

The measuring head is spring-mounted and has a practical V groove. This makes it easier to carry out measurements on rounded objects like axes or hinges and prevents vibrations from distorting or affecting the measuring results.
The measuring device is extremely compact and can be used with one hand only. It has an impressive measuring range from 0 to 1250 µm and guarantees precise measuring results with helpful statistical values and a practical alarm function which alerts the user when predefined thickness thresholds have been exceeded.

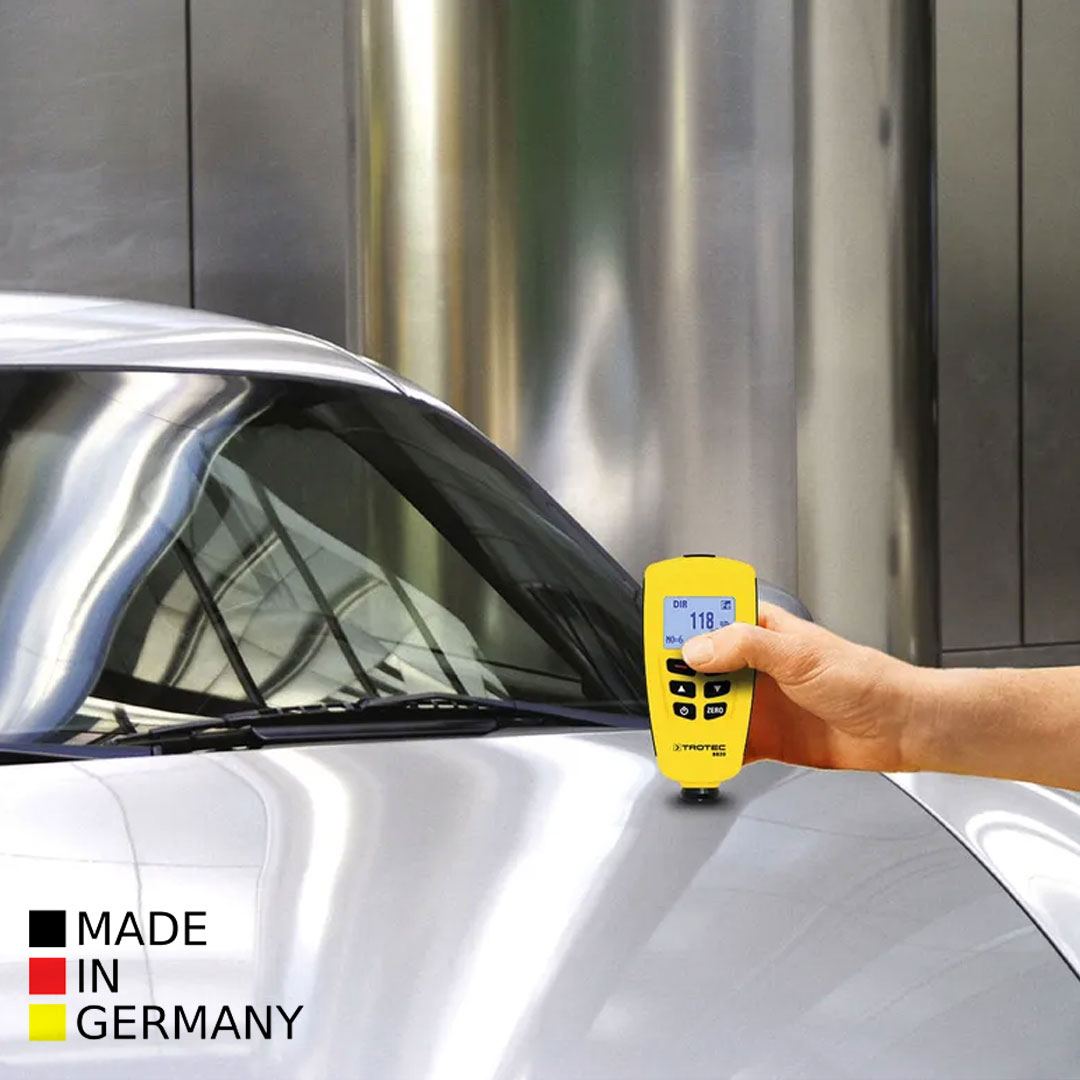

These professional functions and features make the Trotec Bb20 Coating Thickness Gauge ideal for use in the automotive sector where it can be used to inspect the bodywork of cars and check whether a car has been involved in an accident or a new coat of paint has been applied. It can also be used to check just about everything ranging from paint thickness on railings to the coats of paint on a boat or ship as well as other protective coatings.
Benefits in practice:
Layer thickness measurement | |
---|---|
Functional principle | Layer thickness | Magnetic induction, Turbulent flow |
Material | Layer thickness | Ferromagnetic ground, Non-ferrous metal ground |
Min. measuring range [µm] | 0 |
Max. measuring range [µm] | 1,250 |
Accuracy | ±0.1 µm |
Tolerance | Non-ferrous metal ground Guaranteed tolerance with ferromagnetic ground in the measuring range from 0 to 850 µm | (±3 % + 1.5) µm of measured value |
Tolerance | Non-ferrous metal ground Guaranteed tolerance with non-ferrous metal ground in the measuring range from 850 to 1,250 µm | ±5 % of measured value |
Tolerance | Ferromagnetic ground In the measuring range from 0 to 850 µm | (±3 % + 1) µm of measured value |
Tolerance | Ferromagnetic ground In the measuring range from 850 to 1,250 µm | ±5 % of measured value |
Minimum measuring surface with non-ferrous metal ground | Ø 5 mm |
Minimum bending radius with non-ferrous metal ground | 3 mm |
Critical primary layer thickness of non-ferrous metal ground | 0.3 µm |
Minimum measuring surface with ferromagnetic ground | Ø 7 mm |
Minimum bending radius of the measuring surface with ferromagnetic ground | 1.5 mm |
Critical primary layer thickness of ferromagnetic ground | 0.5 µm |
Memory organisation | |
Internal flash memory | Up to 400 measured values |
Recall of previous measurements | |
Display | |
LCD | Yes |
Monochrome | Yes |
Device control | |
Push buttons | Yes |
Ambient conditions | |
Operation - min. temperature [°C] | 0 |
Operation - max. temperature [°C] | 40 |
Operation – min. relative humidity [% r.F.] | 20 |
Operation - max. relative humidity [% r.F.] | 90 |
Dimensions | |
Length (packaging excluded) [mm] | 110 |
Width (packaging excluded) [mm] | 24 |
Height (packaging excluded) [mm] | 54 |
Weight | |
(packaging excluded) [kg] | 0.114 |
STANDARD SCOPE OF DELIVERY | |
---|---|
Standard scope of delivery | |
Measuring device | Yes |
Transport case | Yes |

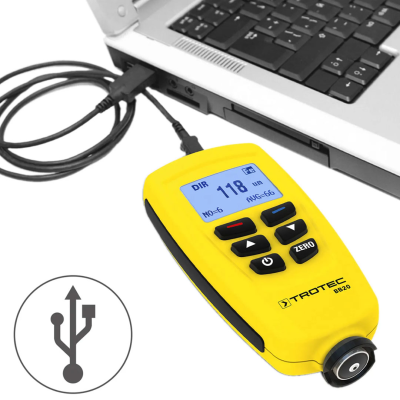

USB cable | Yes |
Software | Yes |
Calibration accessories | Yes |
Operating manual | Yes |
ASCERTAINABLE MEASURED VALUES AND FUNCTIONS | |
---|---|
Internal sensors | |
Layer thickness [µm] | |
External sensors | |
Minimum value display | Yes |
Maximum value display | Yes |
Average value display | Yes |
Automatic switch-off | Yes |
Backlit display | Yes |
Acoustic alarm function | Yes |
Sensor for ferromagnetic ground | Yes |
Sensor for non-ferrous metal ground | Yes |
Two-point calibration | Yes |
Standard deviation | Yes |
Battery status indication | Yes |
