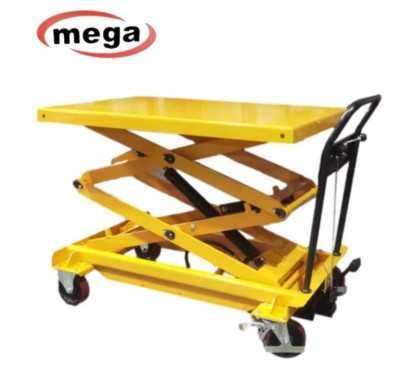

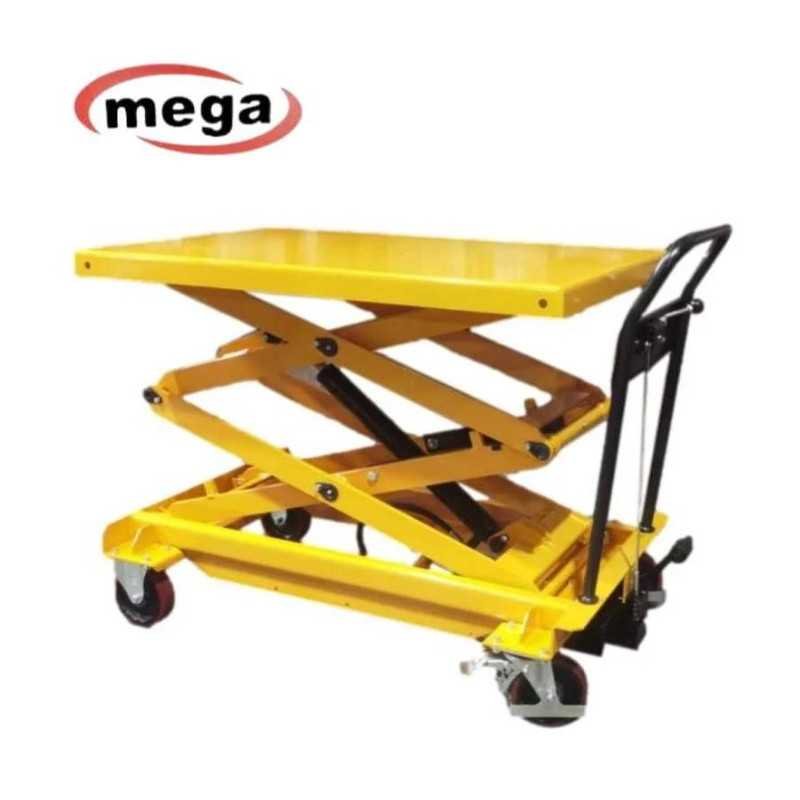

Manual Hydraulic Lift Jack 1000kg – Extended Lift to 1700 mm

A high-lift manual hydraulic platform designed for workshops that require extra working height and strong mechanical lifting performance without electrical components.

Extra Height for Better Ergonomics

The 1700 mm lift range allows technicians to work at a comfortable level during transmission installation, component assembly, and heavy part positioning.

Dual Pump Power System

• Double oil pumps for faster lifting response
• Dual scissor frame for load stability
• Twin hydraulic cylinders for balanced force

Ideal For

• Heavy transmission handling
• Raised working platform applications
• Loading large components to benches
• Industrial and workshop workflows

Mobility and Stability

Large 150 mm PU wheels enable smooth movement across workshop floors, while the reinforced structure provides stable lifting under heavy loads.

Technical Specifications

• Capacity: 1000 kg
• Max lift height: 1700 mm
• Lowered height: 500 mm
• Platform size: 1200 × 600 mm
• Table thickness: 80 mm
• Oil pumps: Dual
• Structure: Double scissor + dual hydraulic cylinders
• Lifting speed: approx. 12 mm per stroke
• Wheel type: PU Ø150 mm
• Net weight: 225 kg
• Color: Yellow / Orange

Key Advantage

Higher lift range combined with dual-pump hydraulics delivers faster manual operation and improved load control for demanding workshop tasks.
